Headset, Seat Posts and Pedals Section: Page 3
Click on an underlined item or scroll down this page to view everything.
Order online via our
- Secure Order Form -
and receive FREE...
|

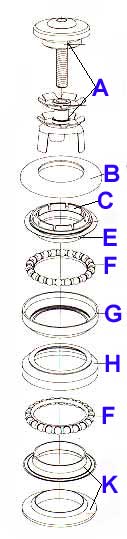

| Parts for Campagnolo Threaded Headsets |
|
Genuine Campagnolo Threaded Headset Parts
|
| Part # | Description | Normal Retail |
Our Price USD$ |
You Save |
|---|---|---|---|---|
| Parts for Record and Chorus * 1 inch * Threaded Headsets | ||||
| HD-98-11A |
A
- Record 1 inch Nut and O Ring May be used to upgrade Chorus 1 inch threaded headsets. |
$25.00 | $19.88 | $5.12 |
| HD-98-11B |
B
- Record 1 inch tabbed washer. Original replacement part for Chorus 1 inch threaded headsets also. |
$10.00 | $6.88 | $3.12 |
| HD-98-11C |
C
- Record 1 inch top threaded race holder. Original replacement part for Chorus 1 inch threaded headsets also. |
$25.00 | $19.88 | $5.12 |
| HD-98-11D |
D and E
- Record 1 inch upper bearing race and seal May be used to upgrade Chorus 1 inch threaded headsets. |
$25.00 | $19.88 | $5.12 |
| BB-97-00 |
F
- Record 1 inch Campagnolo Headset bearings and retainers, 5/32" top and 3/16" bottom. Set of 2. Original replacement part for Chorus 1 inch threaded headsets also. |
$25.00 | $19.88 | $5.12 |
| BB-10-04 |
Le Tour 5/32" loose ball bearings. Replaces 22 original grade 25 ball bearings in Record or Chorus upper bearing retainers. Bag of 75, grade 25 balls. Grade 25 means that deviation from a perfect sphere is less than .00025 inches. |
$15.00 | $9.88 | $5.12 |
| BB-10-03 |
Le Tour 3/16" loose ball bearings. Replaces 20 original grade 25 ball bearings in Record or Chorus lower bearing retainers. Bag of 25, grade 25 balls. Grade 25 means that deviation from a perfect sphere is less than .00025 inches. |
$12.00 | $7.88 | $4.12 |
| HD-98-11G |
G
- Record 1 inch upper pressed in race Fits into the top of your frame's headtube May be used to upgrade Chorus 1 inch threaded headsets. |
$25.00 | $19.88 | $5.12 |
| HD-98-11H |
H
- Record 1 inch lower pressed in race Fits into the bottom of your frame's headtube. May be used to upgrade Chorus 1 inch threaded headsets. |
$25.00 | $19.88 | $5.12 |
| HD-98-24A |
I
- Record Black Rubber Band Seal fits 1 and 1 1/8 lower headset cups |
$12.00 | $9.88 | $2.12 |
| HD-97-10 |
K and D
- Record 1 inch headset Fork Crown Race and seal For use with 3/16 of an inch ball bearings. Original replacement part for Chorus 1 inch threaded headsets also. |
$25.00 | $19.88 | $5.12 |
| Click on the underlined text to order online via our Secure Order Form. | ||||
|
Threadless Handlebar Stem
Used with Hiddensets or Threadless Headsets and smooth, non-threaded, fork columns. |
Quill Style Handlebar Stem Used with a traditional threaded fork and threaded headset. |
|
|
| Parts for Campagnolo Threadless Headsets |
|
Genuine Campagnolo Threadless Headset Parts
|
| Part # | Description | Normal Retail |
Our Price USD$ |
You Save |
|---|---|---|---|---|
| Parts for Record and Chorus * 1 inch * Threadless Headsets | ||||
| HD-98-11 |
A
- Record 1 inch threadless Carbon Top Cap and star nut.
Also fits 1 inch Chorus threadless headsets. |
$40.00 | $34.88 | $5.12 |
| HD-21-11 |
Le Tour 1 inch threadless headset star nut. Use with Record or Chorus headsets and 1 inch steel fork columns. Also fits a few 1 1/8 inch alloy fork columns with a 22.2 mm inside diameter. |
$5.00 | $2.88 | $2.12 |
| HD-98-12 |
A
- Chorus 1 inch threadless Alloy Top Cap and star nut. Also fits Record 1 inch threadless headsets. |
$35.00 | $29.88 | $5.12 |
| BO-30-16A |
Le Tour threadless headset top cap bolt. Stainless steel, 35mm long, 6x1mm threading, 6 mm allen head top. Fits Campy Chorus (NOT Record) and most other 1 or 1 1/8 inch threadless headsets. |
$5.00 | $2.88 | $2.12 |
| HD-98-12B |
B
- Record 1 inch threadless upper race cover plate. Original replacement part for Chorus 1 inch threaded headsets also. |
$20.00 | $14.88 | $5.12 |
| HD-98-12E |
D and E
- Record 1 inch top threadless race and seal. Original replacement part for Chorus 1 inch threadless headsets also. |
$25.00 | $19.88 | $5.12 |
| HD-98-10 |
C
- Record 1 inch threadless centering cone for the upper
bearing race. Original replacement part for Chorus 1 inch threadless headsets also. Translucent Nylon plastic. |
$10.00 | $7.88 | $2.12 |
| BB-97-00 |
F
- Record 1 inch Threadless Headset bearings and retainers, 5/32" top and 3/16" bottom. Set of 2. Original replacement part for Chorus 1 inch threadless headsets also. |
$25.00 | $19.88 | $5.12 |
| BB-10-04 |
Le Tour 5/32" loose ball bearings. Replaces 22 original grade 25 ball bearings in Record or Chorus upper bearing retainers. Bag of 75, grade 25 balls. Grade 25 means that deviation from a perfect sphere is less than .00025 inches. |
$15.00 | $9.88 | $5.12 |
| BB-10-03 |
Le Tour 3/16" loose ball bearings. Replaces 20 original grade 25 ball bearings in Record or Chorus lower bearing retainers. Bag of 25, grade 25 balls. Grade 25 means that deviation from a perfect sphere is less than .00025 inches. |
$12.00 | $7.88 | $4.12 |
| HD-98-11G |
G
- Record 1 inch upper pressed in race Fits into the top of your frame's headtube. Original replacement part for Chorus 1 inch threadless headsets also. |
$25.00 | $19.88 | $5.12 |
| HD-98-11H |
H
- Record 1 inch lower pressed in race Fits into the bottom of your frame's headtube. May be used to upgrade Chorus 1 inch threadless headsets. |
$25.00 | $19.88 | $5.12 |
| HD-98-24A |
I
- Record Black Rubber Band Seal fits 1 and 1 1/8 lower headset cups |
$12.00 | $9.88 | $2.12 |
| HD-97-10 |
K and D
- Record 1 inch headset Fork Crown Race and seal For use with 3/16 of an inch ball bearings. Original replacement part for Chorus 1 inch threadless headsets also. |
$25.00 | $19.88 | $5.12 |
| Click on the underlined text to order online via our Secure Order Form. | ||||
| Part # | Description | Normal Retail |
Our Price USD$ |
You Save |
|---|---|---|---|---|
| Parts for Record * 1 1/8 inch * Threadless Headsets | ||||
| HD-98-13 | A - Record 1 1/8 inch threadless Carbon Top Cap and star nut. | $40.00 | $34.88 | $5.12 |
| HD-98-09 |
A
- Chorus 1 1/8 inch threadless Alloy Top Cap and star nut. Also fits Record 1 1/8 inch threadless headsets. |
$30.00 | $24.88 | $5.12 |
| BO-30-16A |
Le Tour threadless headset top cap bolt. Stainless steel, 35mm long, 6x1mm threading, 6 mm allen head top. Fits Campy Chorus (NOT Record) and most other 1 or 1 1/8 inch threadless headsets. |
$5.00 | $2.88 | $2.12 |
| HD-21-12 |
Le Tour 1 1/8 inch threadless headset star nut. Use with Record headsets and 1 1/8 inch steel or alloy fork columns with an inside diameter of 25.4 mm. |
$5.00 | $2.88 | $2.12 |
| HD-98-13B | B - Record 1 1/8 inch threadless upper race cover plate. | $20.00 | $14.88 | $5.12 |
| HD-98-13E | D and E - Record 1 1/8 inch top threadless race and seal. | $25.00 | $19.88 | $5.12 |
| HD-98-14 |
C
- Record 1 1/8 inch threadless centering cone for the upper
bearing race. Translucent Nylon plastic. |
$12.00 | $9.88 | $2.12 |
| BB-90-00 |
F
- Record 1 1/8 inch Threadless Headset bearings and retainers, 5/32" top and 5/32" bottom. Set of 2. |
$25.00 | $19.88 | $5.12 |
| BB-10-04 |
Le Tour 5/32" loose ball bearings. Replaces 24 original grade 25 ball bearings in each Record bearing retainer. Bag of 75, grade 25 balls. Grade 25 means that deviation from a perfect sphere is less than .00025 inches. |
$15.00 | $9.88 | $5.12 |
| HD-98-13G |
G
- Record 1 1/8 inch upper pressed in race Fits into the top of your frame's headtube. |
$25.00 | $19.88 | $5.12 |
| HD-98-13H |
H
- Record 1 1/8 inch lower pressed in race Fits into the bottom of your frame's headtube. |
$25.00 | $19.88 | $5.12 |
| HD-98-24A |
I
- Record Black Rubber Band Seal fits 1 and 1 1/8 lower headset cups |
$12.00 | $9.88 | $2.12 |
| HD-98-16 |
K and D
- Record 1 1/8 inch headset Fork Crown Race and seal For use with 5/32 of an inch ball bearings. |
$25.00 | $19.88 | $5.12 |
| Click on the underlined text to order online via our Secure Order Form. | ||||
Genuine Campagnolo Hiddenset Headset Parts
|
| Part # | Description | Normal Retail |
Our Price USD$ |
You Save |
|---|---|---|---|---|
| Parts for Record, Chorus and Centaur * 1 1/8 inch * Hiddenset Headsets | ||||
| HD-98-13 |
A
- Record 1 1/8 inch Hiddenset Carbon Top Cap and star nut. Also fits Chorus and Centaur 1 1/8 inch Hiddensets. |
$40.00 | $34.88 | $5.12 |
| HD-98-09 |
A
- Chorus 1 1/8 inch Hiddenset Alloy Top Cap and star nut. Also fits Record and Centaur 1 1/8 inch Hiddensets. |
$30.00 | $24.88 | $5.12 |
| BO-30-16A |
Le Tour Hiddenset headset top cap bolt. Stainless steel, 35mm long, 6x1mm threading, 6 mm allen head top. Fits Campy Chorus (NOT Record) and most other 1 or 1 1/8 inch Hiddenset style headsets. |
$5.00 | $2.88 | $2.12 |
| HD-21-12 |
Le Tour 1 1/8 inch Hiddenset headset star nut. Use with Record headsets and 1 1/8 inch steel or alloy fork columns with an inside diameter of 25.4 mm. |
$5.00 | $2.88 | $2.12 |
| HD-98-14B |
B
- Record 1 1/8 inch Hiddenset upper race cover plate. Normal size, 5 mm tall, carbon fiber. Also fits Chorus and Centaur 1 1/8 inch Hiddensets. |
$25.00 | $19.88 | $5.12 |
| HD-98-14BT |
B
- Record 1 1/8 inch TTC Hiddenset upper race cover plate. Tall top cap, 15 mm tall, carbon fiber. Also fits Chorus and Centaur 1 1/8 inch Hiddensets. |
$35.00 | $29.88 | $5.12 |
| HD-98-14E |
D and E
- Record 1 1/8 inch Hiddenset upper race and seal. Original replacement part for Chorus and Centaur Hiddensets also. |
$25.00 | $19.88 | $5.12 |
| HD-98-14A |
C
- Record 1 1/8 inch Hiddenset centering cone for the upper
bearing race. Translucent Nylon plastic. Original replacement part for Chorus and Centaur Hiddensets also. |
$12.00 | $9.88 | $2.12 |
| BB-90-02 |
F
- Record 1 1/8 inch Hiddenset Headset bearings and retainers, 1/8" top and 1/8" bottom. Set of 2. Original replacement part for Chorus and Centaur Hiddensets also. |
$25.00 | $19.88 | $5.12 |
| BB-10-05 |
Le Tour 1/8" loose ball bearings. Replaces 28 original, grade 25 ball bearings in each Record 1 1/8 Hiddenset bearing retainer. Bag of 144, grade 25 balls. Grade 25 means that deviation from a perfect sphere is less than .00025 inches. |
$15.00 | $9.88 | $5.12 |
| HD-98-14G |
G
- Record 1 1/8 inch Hiddenset upper pressed in race Fits inside the top of your frame's headtube. Original replacement part for Chorus and Centaur Hiddensets also. |
$25.00 | $19.88 | $5.12 |
| HD-98-14H |
H
- Record 1 1/8 inch Hiddenset lower race Fits inside the bottom of your frame's headtube. Original replacement part for Chorus and Centaur Hiddensets also. |
$25.00 | $19.88 | $5.12 |
| HD-98-24 |
K and D
- Record 1 1/8 inch Hiddenset Fork Crown Race and seal For use with 1/8 of an inch ball bearings. Original replacement part for Chorus and Centaur Hiddensets also. |
$25.00 | $19.88 | $5.12 |
| Click on the underlined text to order online via our Secure Order Form. | ||||
Campagnolo Headset Parts, Tools, Maintenance and Tool Use Tips:
|
| 100% Satisfaction Guaranteed
At Branford Bike we want you to be happy and satisfied with everything you purchase from us. We understand that sometimes you will need to return a product because it was not quite what you wanted. You may return anything you purchase from us within 60 days and unused, for an immediate exchange or refund. |
