Headset, Seat Posts and Pedals Section: Page 8

Click on an underlined item or scroll down this page to view everything.

- Headset Maintenance Tools -

- Headset Removal Tools -

- Headset Parts, Accessories, Tools and Tips -

Order online via our - Secure Order Form - and receive FREE...

Headset Maintenance Tools

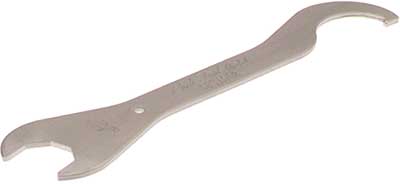

Park HCW-12, 32 mm Headset and Bottom Bracket Lock Ring Wrench
Park HCW-12 Tool

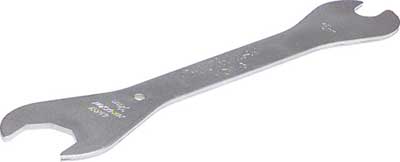

Park HCW-6, 32 mm Headset and 15 mm Pedal Wrench
Park HCW-6 Tool

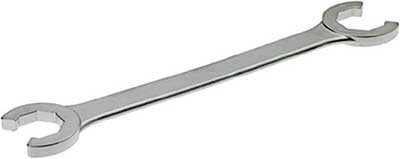

Park HW-2, 32 and 36 mm, Deluxe 8 point Headset Top Nut Wrench
Park HW-2 Tool

Tools for maintenance:
  • Campagnolo 1 inch threaded headsets require two 32 mm open end wrenches to loosen and tighten the upper race and top nut. Some riders will use an adjustable wrench on the top nut but those often slip and will round the nut. The Park HCW-12 or HCW-6 with the HW-2 8 point wrench is our choice to work on 1 inch threaded headsets. The HCW-12 can also be used for older style bottom bracket lock rings while the HCW-6 doubles as a handy 15 mm pedal wrench.
  • We suggest using Le Tour Whisper White grease and the Le Tour Grease Gun for lubricating Campagnolo headsets. Click on the underlined text to see both in our Bicycle Care catalog section.
  • Campagnolo Threadless and Hiddensets only require a set of hex or Allen wrenches for regular maintenance. The Park AWS-3 is ideal for the headset top cap. It fits most hands perfectly and is almost impossible to over tighten the cap with. It comes with a 4, 5 and 6 mm hex head wrench tips. For extra comfort the lower wrench tips are covered.
  • We suggest getting the complete set of Park hex wrenches, Park HXS-2, with a holder. The holder stands alone or mounts easily to peg board or plywood. It prevents wrenches from getting lost and will help to keep your work area organized. The extra long handles are ideal for working on handlebar stems and cranks. The Park HXS-2 set contains 2, 2.5, 3, 4, 5, 6, 8 and 10 mm hex head wrenches.
  • Warranty service and help with technical questions is available from Park Tool in Saint Paul, Minnesota USA. Call Park Tool at (651) 777-6868, e-mail them at Info@ParkTool.com or visit them at ParkTool.com by clicking on the underlined text .
Park 4-5-6 mm Allen Wrench
Photo not to scale.
Park AWS-1 Tool		 Park HXS-2 Allen Wrench Set with Holder
Photo not to scale.
Park HXS-2 Tool

Part # Description Normal
Retail		 Our Price
USD$		 You
Save
TL-73-52 Park HCW-12, 32 mm Headset
and Bottom Bracket Lock Ring Wrench		 $20.00 $15.88 $40.12
TL-73-46 Park HCW-6, 32 mm Headset
and 15 mm Pedal Wrench		 $20.00 $15.88 $40.12
TL-72-75 Park HW-2, 32 and 36 mm
Deluxe 8 point Headset Top Nut Wrench		 $50.00 $39.88 $10.12
TL-70-02 Park 4-5-6 mm Allen Wrench $12.00 $9.88 $2.12
TL-74-69 Park HXS-2 Allen Wrench Set
with Holder		 $50.00 $39.88 $10.12
Click on the underlined text to order online via our Secure Order Form.

Headset Removal Tools

Park RT-1 Headset Cup Remover

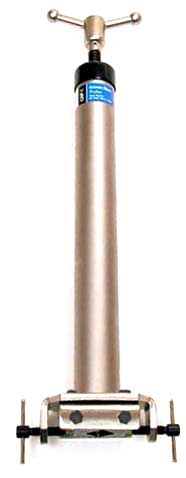

Park RT-1 Tool		 Park CRP-1 Fork Crown Race Puller
Park CRP-1 Tool

Headset Removal Tools
  • Headset cups are easily and safely removed with the Park RT-1, Headset Cup Remover tool. Modeled after the Campagnolo version, Park improved the remover by nickel plating it and widening it to fit 1 inch, 1 1/8 and 1 1/4 inch headsets.
  • Simply slide the remover into your head tube until the flanged base clicks once it clears the headset race. Hold a rag over the race to be removed and hit the tool with a 16 ounce hammer. After a few taps the race will pop out.
  • To remove an old fork crown race that will be discarded, you may use a punch and hammer. If you wish to re-use the race, then the Park CRP-1 is recommended.
  • The Park CRP-1 is a precision tool for quickly and easily removing the headset crown race from the crown race seat of the fork. Universal design works with 1-inch, 1-1/8 inch, 1-1/4 inch and 1.5-inch crown race/fork (suspension or rigid) combinations.
  • To use the Park CRP-1, simply turn the two, bottom mounted, small T-handles to press the thin-edged wedges under the crown race. Then turn the large, top mounted, Y-handle to completely pull the crown race from the fork. No more hammer and punch! All steel construction for long life.
  • Visit our Headset 101 page 2 to read about Working with Traditional Threaded Headsets and Park headset tools.
  • Visit our Headset 101 page 3 to read about Working with Threadless Headsets and Park headset tools.
  • Warranty service and help with technical questions is available from Park Tool in Saint Paul, Minnesota USA. Call Park Tool at (651) 777-6868, e-mail them at Info@ParkTool.com or visit them at ParkTool.com by clicking on the underlined text .
Part # Description Normal
Retail		 Our Price
USD$		 You
Save
TL-71-19 Park RT-1 Headset Cup Remover $50.00 $39.88 $10.12
TL-74-46 Park CRP-1 Fork Crown Race Puller $150.00 $124.88 $25.12
Click on the underlined text to order online via our Secure Order Form.

Campagnolo Headset Parts, Tools, Maintenance and Tool Use Tips:
