Branford Bike: Genuine Campagnolo Record and Chorus Seat Posts

Campagnolo Seat Posts

Although it is not obvious, Campagnolo recently redesigned their Record and Chorus carbon seat posts.
The saddle cradle teeth for Record and Chorus are now twice as fine as earlier models and provide more precise adjustments of saddle pitch. The Record upper clamp is made from carbon fiber like their crank arms. The lower clamp is alloy but has finer teeth than earlier models and is black anodized. Both the upper and lower clamps are silver alloy for Chorus.
Record and Chorus carbon seat posts come in a 27.2 mm diameter version that is 250 mm long or a 31.6 mm diameter model that is 350 mm long. Both have 25 mm of saddle offset relative to the center line of the post. Record also comes in a new 32.4 mm diameter version that is 350 mm long and has 25 mm of saddle offset.
The Record 27.2 post weighs a mere 185 grams while the Chorus 27.2 post is just 10 grams heavier. Oue experience shows that both are stronger and more durable than previous carbon fiber models.
The 250 mm, 27.2 post has a minimum insertion depth of 25 mm and a maximum insertion depth of 185 mm. The 350 mm, 31.6 and 32.4 posts have a minimum insertion depth of 25 mm and a maximum insertion depth of 285 mm.
Record and Chorus carbon posts should only be used on bicycles that allow for the use of Campagnolo's slip on seat post clamp. Traditional seat clamps pinch a seat post unevenly and can cause it to deform. Campagnolo seat post clamps grip a seat post more evenly and allow it to retain its round shape. Record and Chorus 27.2 posts come with a 31.6 to 31.9 mm clamp. Record and Chorus 31.6 and 32.4 seat posts come with a 34.9 to 35.2 mm seat post clamp.
We suggest thoroughly cleaning the inside of your seat tube before inserting a Record or Chorus carbon post. Burrs and rough spots should be removed so they do not scratch the post. Grease is not recommended and should only be applied if the post is a very tight fit.
We also suggest using a Park Torque Wrench, for the most accurate installation. Campagnolo recommends the following torque specifications:
Campagnolo Seat Post cradle bolt - tighten to 22.0 Newton Meters (N.m) or 16.2 foot pounds
Campagnolo Seat Post frame mounted clamp bolt - tighten to 10.0 Newton Meters (N.m) or 7.4 foot pounds
Visit our Campagnolo Seat Post Parts page to read about replacement parts and accessories for Campagnolo seat posts.
Record and Chorus seat posts are made in Italy by Campagnolo and backed with a three year warranty.
Warranty service and help with technical questions is available from Campagnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, e-mail them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
Official product manuals and more product information is also available at Campagnolo.com .
The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.

Part #	Description	Normal Retail	Our Price USD$	You Save

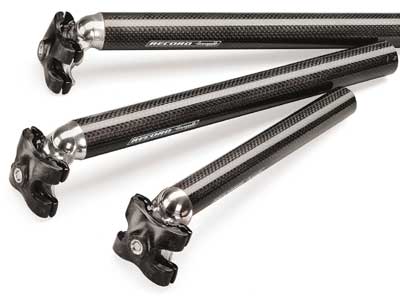

Campagnolo Record Carbon Seat Posts
ST-94-01	Record Carbon Seatpost, 27.2 mm diameter 250 mm long, 185 grams. 2004 to current model.	$160.00	$129.88	$30.12
ST-94-02	Record Carbon Seatpost, 31.6 mm diameter 350 mm long, 235 grams. 2004 to current model.	$180.00	$149.88	$30.12
ST-94-03	Record Carbon Seatpost, 32.4 mm diameter 350 mm long, 245 grams. 2004 to current model.	$190.00	$159.88	$30.12
ST-90-30	Record 2003 Carbon Seatpost, 27.2 mm diameter 250 mm long, 180 grams. 2002 to 2003 model.	$150.00	$99.88	$50.12

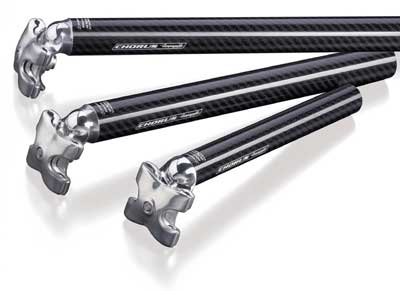

Campagnolo Chorus Carbon Seat Posts
ST-94-04	Chorus Carbon Seatpost, 27.2 mm diameter 250 mm long, 195 grams. 2004 to current model.	$130.00	$109.88	$20.12
ST-94-05	Chorus Carbon Seatpost, 31.6 mm diameter 350 mm long, 245 grams. 2004 to current model.	$140.00	$119.88	$20.12
Click on the underlined text to order online via our Secure Order Form.

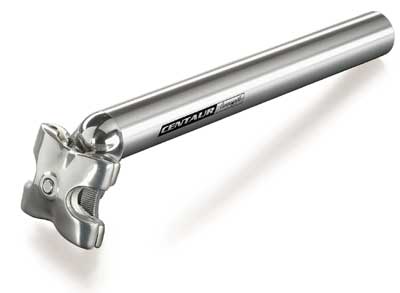

Centaur seat posts are surprisingly light at 221 grams and and exceptionally durable.
They sport a 250 mm long alloy seat tube that is 27.2 mm in diameter and attached to an alloy saddle clamping cradle. The 250 mm, 27.2 post has a minimum insertion depth of 25 mm and a maximum insertion depth of 185 mm. The Centaur seat post has 25 mm of saddle offset relative to the center line of the post.
The Centaur Campagnolo seat post can be used in any frame; it does not require a special Campagnolo seat post clamp.
We suggest using Le Tour Whisper White grease to lightly coat the Centaur seat post before inserting it into your frame.
We also suggest using a Park Torque Wrench, for the most accurate installation. Campagnolo recommends the following torque specifications:
Campagnolo Seat Post cradle bolt - tighten to 22.0 Newton Meters (N.m) or 16.2 foot pounds
Campagnolo Seat Post frame mounted clamp bolt - tighten to 10.0 Newton Meters (N.m) or 7.4 foot pounds
Visit our Campagnolo Seat Post Parts page to read about replacement parts and accessories for Campagnolo seat posts.
Record, Chorus and Centaur seat posts are made in Italy by Campagnolo and backed with a three year warranty.
Warranty service and help with technical questions is available from Campagnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, e-mail them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
Official product manuals and more product information is also available at Campagnolo.com .
The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.

Part #	Description	Normal Retail	Our Price USD$	You Save
ST-94-00	Centaur Alloy Seatpost, 27.2 mm diameter 250 mm long, 221 grams. 2004 to current model.	$110.00	$89.88	$20.12
Click on the underlined text to order online via our Secure Order Form.

Order Online via our Secure Order Form

and receive FREE expedited processing with email confirmations.

Our Secure Order Form is easy to use. Simply fill in the boxes as you would for a traditional paper catalog order form.

Our Secure Order Form opens in a separate window that you may resize and tile behind our online catalog. After filling in your name, address and card information you may leave the order window open. Browse through our catalog and when you wish to purchase an item simply "cut and paste" the part number and description to the appropriate order form boxes.

When you are done shopping, submit your order for error checking, and then for processing. We will email you a confirmation within 10 minutes. Another, more detailed confirmation, will follow when we ship your order.

We accept Visa, Discover and MasterCard for payment.
We will NOT charge your card until your order is shipped.
