Branford Bike: Campagnolo Record and Chorus Headsets

Campagnolo Record Headsets:

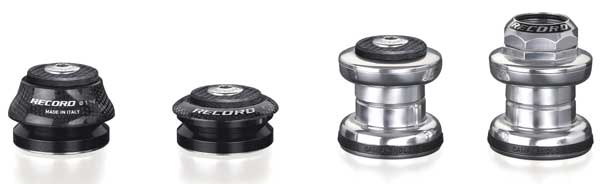

Pictured above from left to right are:
Record TTC (Tall Top Cap) Hiddenset, Record normal height Hiddenset, Record Threadless and standard Record Threaded headset.
Record Hiddensets are designed for smooth 1 1/8 inch fork columns and require Hiddenset compatible head tube lugs.
Hiddensets fit inside your frame and are considered internal headsets. They use grade 25, precision 1/8 inch ball bearings in two stainless steel retainers.
The Tall Top Cap hiddenset has a stack height of 15.9 mm. The normal height Hiddenset has a stack height of just 5.9 mm. Both will accept Le Tour headset spacers.
Both models adjust by tightening a 5 mm allen head center bolt that threads into an internal, fork mounted, star nut. The carbon fiber top cap assembly and star nut are included with both Hiddenset models.
Both Record Hiddensets have a beautiful carbon fiber finish and tip the scales at a mere 73 grams.

Campagnolo also makes Record Threadless headsets that fit smooth, 1 inch and 1 1/8 inch fork columns, and frames with traditional head tubes.
Both Record Threadless headset sizes weigh in at a mere 110 grams.
Record Threadless headsets feature a self centering upper race that provides easier adjustment and greater durability.
Campagnolo also produces a 1 inch headset that is designed for use with 1 inch threaded forks and quill style handlebar stems.
Record Threadless and traditional threaded headsets have a beautiful satin silver anodized finish. The hardened steel races are precisely machined and roll on grade 25 stainless steel ball bearings encased in easy to install, retainers. It is reasonable to expect 20,000 miles from a properly installed and well maintained Record headset.
The one inch threadless headset upper race, uses 5/32 diameter balls, while the lower race employs larger, 3/16 balls, for greater durability. 1 1/8 inch Record threadless headsets use 5/32 bearings for upper and lower races. For maximum longevity we suggest replacing the headset bearings every two years or 7 to 8,000 miles.
The lower race has four grease ports hidden under a black elastic band that allow for easy and quick lubrication without disassembling the headset.
We suggest using Le Tour Whisper White grease and the Le Tour Grease Gun for lubricating Campagnolo headsets.
Stack height is the actual height or width of the lower and upper portions of your headset. To determine the stack height of your existing headset simply use a calipers to measure the height of your lower headset assembly and then your upper headset assembly. Add the two and you will have the stack height of your current headset.
The Record Threadless headset has a stack height of 24.5 mm and weighs a mere 110 grams. The Record threaded 1 inch headset has a 38.5 mm stack height which makes it an ideal replacement for older Nuovo, Super and C Record threaded headsets. It weighs just 104 grams. Both Record headsets will accept Le Tour headset spacers.
Visit our Campagnolo Headset Parts page to read about replacement parts for Campagnolo headsets.
Made in Italy by Campagnolo and backed with a three year warranty.
Warranty service and help with technical questions is available from Campagnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, e-mail them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
Official product manuals and more product information is also available at Campagnolo.com .
The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.

Part #	Description	Normal Retail	Our Price USD$	You Save
HD-93-21	Record Threadless 1 1/8 inch Hiddenset, Tall Top Carbon Cap	$110.00	$99.88	$10.12
HD-93-20	Record Threadless 1 1/8 inch Hiddenset, normal height	$100.00	$87.88	$12.12
HD-91-10	Record Threadless 1 inch Hiddenset	$85.00	$74.88	$10.12
HD-90-51	Record Threadless 1 inch	$105.00	$94.88	$10.12
HD-90-52	Record Threadless 1 1/8 inch	$120.00	$109.88	$10.12
HD-90-50	Record Threaded 1 inch	$95.00	$84.88	$10.12
Click on the underlined text to order online via our Secure Order Form.

Campagnolo Chorus Threadless headsets fit smooth, 1 inch fork columns, and frames with traditional head tubes.
Campagnolo's Chorus Threadless headset weighs a mere 111 grams and features a self centering upper race that provides easier adjustment and greater durability.
Campagnolo also produces a 1 inch Chorus headset that is designed for use with 1 inch threaded forks and quill style handlebar stems. It is almost identical to the Record headset except the locknut, upper bearing races and pressed in lower bearing race are of lesser quality. Chorus 1 inch threaded headsets spin smoothly but lack the exceptional durability of Record. It is reasonable to expect 10 to 15,000 miles from a properly installed and well maintained Chorus headset.
Chorus Threadless and traditional threaded headsets have a beautiful satin silver anodized finish. The hardened steel races are precisely machined and roll on grade 25 stainless steel ball bearings encased in easy to install, retainers.
The one inch threadless and threaded headset upper race, uses 5/32 diameter balls, while the lower race employs larger, 3/16 balls, for greater durability. For maximum longevity we suggest replacing the headset bearings every two years or 5 to 6,000 miles.
We suggest using Le Tour Whisper White grease and the Le Tour Grease Gun for lubricating Campagnolo headsets.
Stack height is the actual height or width of the lower and upper portions of your headset. To determine the stack height of your existing headset simply use a calipers to measure the height of your lower headset assembly and then your upper headset assembly. Add the two and you will have the stack height of your current headset.
The Chorus Threadless headset has a stack height of 24.5 mm and weighs a mere 111 grams. The Chorus threaded 1 inch headset has a 38.5 mm stack height which makes it an ideal replacement for older Nuovo, Super and C Record threaded headsets. It weighs just 106 grams. Both Chorus headsets will accept Le Tour headset spacers.
Visit our Campagnolo Headset Parts page to read about replacement parts for Campagnolo headsets.
Made in Italy by Campagnolo and backed with a three year warranty.
Warranty service and help with technical questions is available from Campagnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, e-mail them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
Official product manuals and more product information is also available at Campagnolo.com .
The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.

Part #	Description	Normal Retail	Our Price USD$	You Save
HD-90-53	Chorus Threaded 1 inch	$70.00	$59.88	$10.12
HD-90-54	Chorus Threadless 1 inch	$80.00	$69.88	$10.12
Click on the underlined text to order online via our Secure Order Form.

Campagnolo Headset Parts, Tools, Maintenance and Tool Use Tips:

We stock a wide range of genuine replacement parts, bearings and tools for Campagnolo headsets. Click on the underlined text below to read more about:
Visit our Headset Accessories page to read about headset stack spacers and dust covers.
Visit our Campagnolo Headset Parts page to read about replacement parts for Campagnolo headsets.
Visit our Headset Tools page to read about tools for maintenance and removal of all headsets.
Visit our Headset Cutting Tools page to read about the Park Head tube Reamer and Facer.
Visit our Fork Cutting page to read about Park fork cutting and threading tools for headsets.
Visit our Headset Installation Tools page to read about Park tools for installing headsets.
Visit our Headset 101 page 1 to read about Bicycle Headset Standards and Nomenclature.
Visit our Headset 101 page 2 to read about Working with Traditional Threaded Headsets.
Visit our Headset 101 page 3 to read about Working with Threadless Headsets.
Visit our Tool Use Tips page 1 to read about Reaming and Facing Tips.
Visit our Tool Use Tips page 2 to read about Fork Crown Cutting Tips.
Visit our Tool Use Tips page 3 to read about Fork Column Cutting Tips.
Visit our Tool Use Tips page 4 to read about Fork Column Star Fangled Nut Tips.
