Brakes and Shifters Section: Page 1

Click on an underlined item or scroll down this page to view everything.

- Campagnolo Record Ergo 8, 9 & 10 speed Levers -

- Rebuilding Campagnolo Ergo Levers -

- Campagnolo Chorus Ergo 8, 9 & 10 speed Levers -

- Campagnolo Ergo Parts and Cables -

- Installation and Maintenance Tools -

Order online via our - Secure Order Form - and receive FREE...

Campagnolo Record

Record Ultra Ergo Levers Record 2003 Ergo Levers
Record Ultra Ergo Lever
Click on the photo to enlarge		 Record 2003 Ergo Lever
Click on the photo to enlarge

Campagnolo Record Ergo Levers:
  • In 2004 Campagnolo redesigned their right side Record Ergo shifter. They added a Teflon coated, Ergo Index gear for smoother shifting and a carbon polymer, G spring carrier for greater durability. Both are pictured below. The drilled out Ergo Index gear and carbon carrier reduce the weight of the Ultra Ergo lever by a mere 8 grams. However the new Record Ergo levers do shift smoother than previous models.

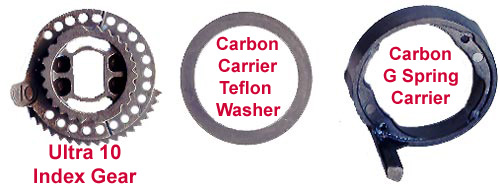

    • Record Ultra Ergo Index Gear

  • You can upgrade any 1999 to current right hand 10 speed Ergo shifter to Ultra shifting by simply replacing the above three parts. Click on the underlined text for more info...
  • The Record Ultra model is only available as a 10 speed lever. The 2003 model is only available as a 9 speed model. The 2003 9 speed model may be retrograded to pre-2001 9 speed or 8 speed at the time of purchase for just $20.00. It will then shift perfectly with all Campagnolo pre-2001 9 speed or Campagnolo 8 speed drivetrains.
  • Campagnolo Record Ergo levers are precisely machined and beautifully finished.
  • The brake lever handles and the finger shift levers are covered with a beautiful carbon weave.
  • Hardened steel springs and alloy hardware are carefully machined and then heat treated for greater durability.
  • Two, stainless steel sealed bearings on each central pivot, provide silky smooth shifting.
  • The weight of a Record Ergo Lever set without cables is just 342 grams.
  • 100% Ergo Brain compatible.
  • Adjustable, downtube cable stops are included. A brake and derailleur cable kit with black housing, two derailleur, two brake wires and a few cable end caps come with the Ergo lever set. Cable crimps are NOT included.
  • We suggest purchasing a bag of Le Tour Cable Crimps and and a few Le Tour 5mm Cable End Caps as Campy does not include enough with their cable kit.
  • Want housing in bright colors? Use Le Tour Brake and Derailleur housing. Le Tour fits Campagnolo Ergo levers perfectly, works flawlessly and adds beauty to any bike.
  • You can expect to get 10,000 to 15,000 miles from the right lever and 20,000 to 30,000 miles from the left lever before they will need rebuilding.
  • For longest life and smoothest shifting we recommend using Le Tour Whisper White grease with the Le Tour Grease Gun to lubricate Campagnolo Ergo levers. Do NOT use chain lube to lubricate Ergo levers.
  • The left side shifter is racheted so it works with double or triple chainring cranks and all Campagnolo front derailleurs. It even works with most Shimano front derailleurs. The right shifter is indexed and only works with Campagnolo rear derailleurs.
  • Genuine Campagnolo replacement parts and cables are available below.
  • Available as a set of two with cables or as individual levers.
  • We suggest using a Park Torque Wrench, for the most accurate installation. Campagnolo recommends the following torque specifications:
    Handlebar Clamp Band - tighten to 10.0 Newton Meters (N.m) or 7.38 foot pounds.
  • Visit our Cable Cutting Tips page to see how professional mechanics install cables and housing.
  • Made in Italy by Campagnolo and backed with a three year warranty.
  • Warranty service and help with technical questions is available from Camapgnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, email them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
  • Official product manuals and more product information is also available at Campagnolo.com .
    The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.
Part # Description Normal
Retail		 Our Price
USD$		 You
Save
LD-94-00 Record Ultra 10 speed Ergo Shifter Set - with cables $400.00 $349.88 $50.12
LD-91-00 Record 9 speed Ergo Shifter Set - with cables $400.00 $349.88 $50.12
LD-94-50 Record Ultra 10 speed right side Ergo Shifter ONLY $220.00 $199.88 $20.12
LD-90-35 Record 9 speed right side Ergo Shifter ONLY $220.00 $199.88 $20.12
LD-99-11 Record 2003 left side Ergo Shifter ONLY $220.00 $199.88 $20.12
LD-94-51 Record Ultra left side Ergo Shifter ONLY $220.00 $199.88 $20.12
LD-92-00A Labor charge to convert current 9 speed shifter to 8 speed $30.00 $20.00 $10.00
LD-92-00B Labor charge to convert current 9 speed shifter to pre-2001 9 speed $30.00 $20.00 $10.00
Click on the underlined text to order online via our Secure Order Form.

Rebuilding Campagnolo Ergo Levers

Ergo Rebuild Manuals
Rebuilding Campagnolo Ergo Levers...
  • Right or rear derailleur side, Ergo levers should be rebuilt every 10,000 to 15,000 miles.
  • We recommend replacing the G springs, Ergo Index gear, Thumb Button spring and Ergo Coil spring when rebuilding a right side lever.
  • Campagnolo Ergopower manuals show how to rebuild a lever with detailed pictures and easy to follow, step by step instructions. The blue manual is for 1998 to current Ergo levers while the yellow one covers 1991 to 1997 Ergo levers.
  • Visit our Ergo parts pages to see helpful exploded parts diagrams and detailed part information.
  • Visit our Campagnolo Ergo Parts page 4 to read about parts for 1991 to 1997 Campagnolo Ergo levers.
  • Visit our Campagnolo Ergo Parts page 5 to read about parts for 1998 Campagnolo Ergo levers.
  • Visit our Campagnolo Ergo Parts page 6 to read about parts for year 1999 to current Campagnolo Ergo levers.
  • We can rebuild or upgrade your 1999 to current, 9 or 10 speed Ergo Levers for you. The cost to rebuild or upgrade a lever is usually $55.00 for parts and $40.00 to $50.00 for labor. Send your lever to us at:
    Branford Bike
    202 Main Street
    Branford, CT 06405
    USA
    Enclose a letter with the problems you have encountered, the amount of mileage on your lever, your return address, email and charge card information. Allow 7 to 10 days for turn around time.
Part # Description Normal
Retail		 Our Price
USD$		 You
Save
MA-80-76 Campagnolo Blue Ergo Rebuild Manual - 1998 to Current $8.00 $4.88 $3.12
MA-80-76A Campagnolo Yellow Ergo Rebuild Manual - 1991 to 1997 $8.00 $4.88 $3.12
Click on the underlined text to order online via our Secure Order Form.

Campagnolo Chorus

Chorus Carbon Ergo Levers Chorus Alloy Ergo Levers

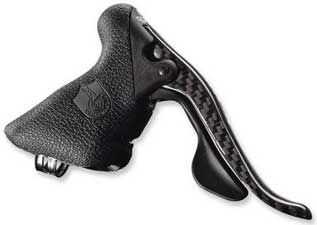

Chorus Carbon Ergo Lever
Click on the photo to enlarge		 Chorus Alloy Ergo Lever
Click on the photo to enlarge

Campagnolo Chorus Ergo Levers:
  • In 2004 Campagnolo redesigned their Chorus Ergo shifters. They added a carbon fiber brake and finger shift lever to reduce weight and increase shifting speed.
  • The Chorus Carbon model is only available as a 10 speed lever. The Chorus alloy model is available as a 9 or 10 speed model. The Chorus alloy 9 speed model may be retrograded to pre-2001 9 speed or 8 speed at the time of purchase for just $20.00. It will then shift perfectly with all Campagnolo pre-2001 9 speed or Campagnolo 8 speed drivetrains.
  • Campagnolo Chorus Ergo levers are precisely machined and beautifully finished.
  • On the Chorus Carbon shifters the brake lever handles are covered with a beautiful carbon weave while the finger shift lever is solid black.
  • Hardened steel springs and alloy hardware are carefully machined and then heat treated for greater durability.
  • Two, stainless steel sealed bearings on each central pivot, provide silky smooth shifting.
  • The weight of a Chorus Carbon Ergo Lever set without cables is just 342 grams. The alloy model tips the scales at only 365 grams.
  • Both models are 100% Ergo Brain compatible.
  • Adjustable, downtube cable stops are included. A brake and derailleur cable kit with black housing, two derailleur, two brake wires and a few cable end caps come with the Ergo lever set. Cable crimps are NOT included.
  • We suggest purchasing a bag of Le Tour Cable Crimps and and a few Le Tour 5mm Cable End Caps as Campy does not include enough with their cable kit.
  • Want housing in bright colors? Use Le Tour Brake and Derailleur housing. Le Tour fits Campagnolo Ergo levers perfectly, works flawlessly and adds beauty to any bike.
  • You can expect to get 10,000 to 15,000 miles from the right lever and 20,000 to 30,000 miles from the left lever before they will need rebuilding.
  • For longest life and smoothest shifting we recommend using Le Tour Whisper White grease with the Le Tour Grease Gun to lubricate Campagnolo Ergo levers. Do NOT use chain lube to lubricate Ergo levers.
  • The left side shifter is racheted so it works with double or triple chainring cranks and all Campagnolo front derailleurs. It even works with most Shimano front derailleurs. The right shifter is indexed and only works with Campagnolo rear derailleurs.
  • Genuine Campagnolo replacement parts and cables are available below.
  • Available as a set of two with cables or as individual levers.
  • We suggest using a Park Torque Wrench, for the most accurate installation. Campagnolo recommends the following torque specifications:
    Handlebar Clamp Band - tighten to 10.0 Newton Meters (N.m) or 7.38 foot pounds.
  • Visit our Cable Cutting Tips page to see how professional mechanics install cables and housing.
  • Made in Italy by Campagnolo and backed with a three year warranty.
  • Warranty service and help with technical questions is available from Camapgnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, email them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
  • Official product manuals and more product information is also available at Campagnolo.com .
    The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.
Chorus Carbon Ergo Lever

Part # Description Normal
Retail		 Our Price
USD$		 You
Save
LD-94-01 Chorus Carbon 10 speed Ergo Shifter Set - with cables $340.00 $289.88 $50.12
LD-93-11 Chorus Alloy 10 speed Ergo Shifter Set - with cables $320.00 $289.88 $30.12
LD-93-12 Chorus Alloy 9 speed Ergo Shifter Set - with cables $320.00 $289.88 $30.12
LD-90-08 Chorus Alloy 10 speed right side Ergo Shifter ONLY $180.00 $169.88 $10.12
LD-90-36 Chorus Alloy 9 speed right side Ergo Shifter ONLY $180.00 $169.88 $10.12
LD-99-13 Chorus Alloy left side Ergo Shifter ONLY $180.00 $169.88 $10.12
LD-94-52 Chorus Carbon 10 speed right side Ergo Shifter ONLY $190.00 $179.88 $10.12
LD-94-53 Chorus Carbon left side Ergo Shifter ONLY $190.00 $179.88 $10.12
LD-92-00A Labor charge to convert current 9 speed shifter to 8 speed $30.00 $20.00 $10.00
LD-92-00B Labor charge to convert current 9 speed shifter to pre-2001 9 speed $30.00 $20.00 $10.00
Click on the underlined text to order online via our Secure Order Form.

Campagnolo Ergo Lever Parts, Cables and Tools:



100% Satisfaction Guaranteed

At Branford Bike we want you to be happy and satisfied with everything you purchase from us. We understand that sometimes you will need to return a product because it was not quite what you wanted. You may return anything you purchase from us within 60 days and unused, for an immediate exchange or refund.
