Brake and Shifter Section: Page 6

Click on an underlined item or scroll down this page to view everything.

- Campagnolo 1999 to Current Ergo Lever Parts -

Order online via our - Secure Order Form - and receive FREE...


What Year is your Ergo Lever? What year is your Ergo Lever?
  • 1991 to 1997 7, 8 and 9 speed Ergo levers had pointed hoods and a sweeping curved brake lever as pictured in the upper left hand corner.
  • 1998 Athena and Veloce 9 speed, and Mirage 8 speed, Ergo levers had pointed hoods and a sweeping curved brake lever as pictured in the upper left hand corner.
  • 1998 Record and Chorus 9 speed Ergo levers had rounded hoods and a flatter, curved brake lever as pictured in the lower left hand corner.
  • ALL 1999 to current, 9 and 10 speed Ergo levers have rounded hoods and a flatter, curved brake lever as pictured in the lower left hand corner. 1999 to current Ergo levers are the ONLY models to have ErgoBrain buttons on the rubber hoods and matching ports in the Carbon plastic bodies.

Campagnolo Current Ergo and Brake Lever Parts

Campy Ergo Lever  Parts

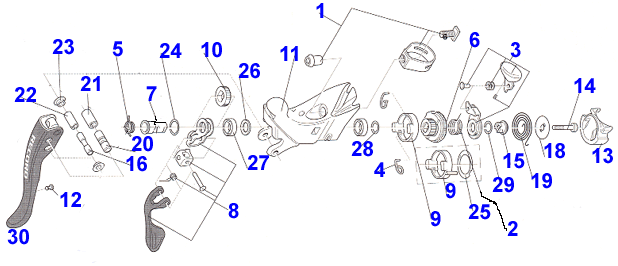

Campagnolo Ergo Lever - 1999 to Current

Campy Aero Brake Lever  Parts

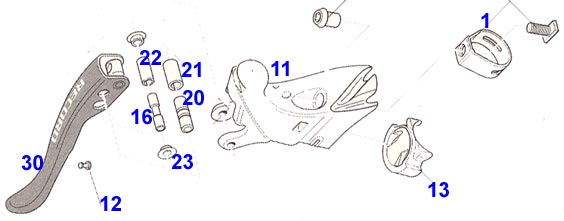

Campagnolo Aero Carbon Brake Lever

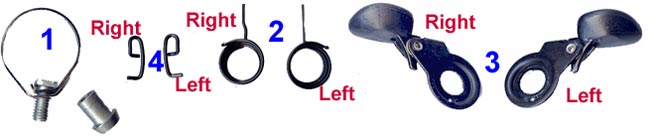

Campagnolo Ergo and Brake Lever Parts - 1, 2, 3 and 4
Handlebar clamps, G springs, thumb button springs and thumb button assemblies.
Clamp and Springs Click on this underlined text to see detailed information for the above pictured Ergo parts...

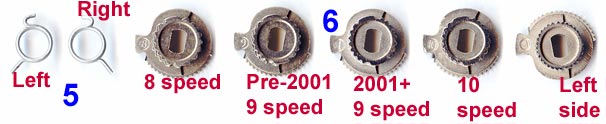

Campagnolo Ergo Lever Parts - 5 and 6
Finger shift lever springs and Ergo index gears.
Finger Shift Springs and Ergo Index Gears Click on this underlined text to see detailed information for the above pictured Ergo parts...

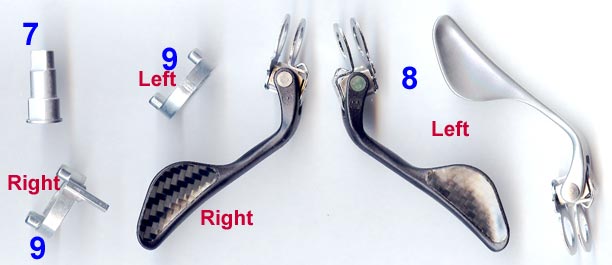

Campagnolo Ergo Lever Parts - 7, 8 and 9
Central Pivot, Finger Shift Levers and G Spring Carriers.
Central Pivot, Finger Shift Levers and G Spring Carriers Click on this underlined text to see detailed information for the above pictured Ergo parts...

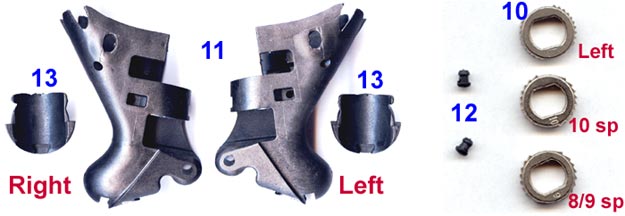

Campagnolo Ergo and Brake Lever Parts - 10, 11, 12 and 13
Ratchet Rings, Cabon Bodies, Lever Rubber Bumpers and Rear Caps.
Ratchet Rings, Cabon Bodies, Lever Rubber Bumpers and Rear Caps Click on this underlined text to see detailed information for the above pictured Ergo parts...

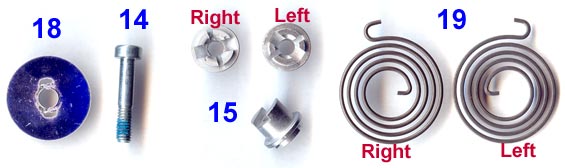

Campagnolo Ergo Lever Parts - 14, 15, 18 and 19
Pivot fixing bolt, Coil Spring Bushing, Pivot Washer and Coil Springs.
Pivot fixing bolt, Coil Spring Bushing, Pivot Washer and Coil Springs
Click on this underlined text to see detailed information for the above pictured Ergo parts...

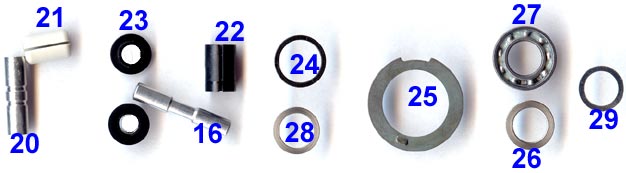

Campagnolo Ergo and Brake Lever Parts - 16, 20, 21, 22, 23, 24, 25, 26, 27, 28 and 29
Brake Lever parts, Washers and Bearings.
Brake Lever parts, Washers and Bearings
Click on this underlined text to see detailed information for the above pictured Ergo parts...

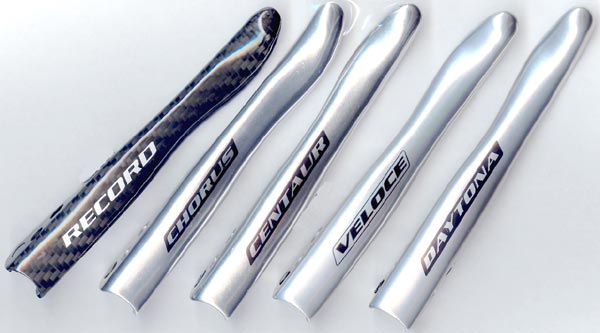

Campagnolo Ergo and Brake Lever Parts - 30
Replacement Brake Levers.
Replacement Brake Levers
Click on this underlined text to see detailed information for the above pictured Ergo parts...
