- Campagnolo 1991 to 1997 Ergo Lever Parts -

Order online via our - Secure Order Form - and receive FREE...

What year is your Ergo Lever?

1991 to 1997 7, 8 and 9 speed Ergo levers had pointed hoods and a sweeping curved brake lever as pictured in the upper left hand corner.
1998 Athena and Veloce 9 speed, and Mirage 8 speed, Ergo levers had pointed hoods and a sweeping curved brake lever as pictured in the upper left hand corner.
1998 Record and Chorus 9 speed Ergo levers had rounded hoods and a flatter, curved brake lever as pictured in the lower left hand corner.
ALL 1999 to current, 9 and 10 speed Ergo levers have rounded hoods and a flatter, curved brake lever as pictured in the lower left hand corner. 1999 to current Ergo levers are the ONLY models to have ErgoBrain buttons on the rubber hoods and matching ports in the Carbon plastic bodies.

Campagnolo Ergo Lever - 1991 to 1997

Only parts with blue numbers are still available.

How to locate and order Campagnolo Ergo parts...

1) Locate the Ergo model you have in the top row of the chart below. Is it a Record, Chorus, etc? This chart only covers year 1991 to 1997 Campagnolo Ergo parts. You may cross reference this section with official Campagnolo part diagrams to see which parts are the same.

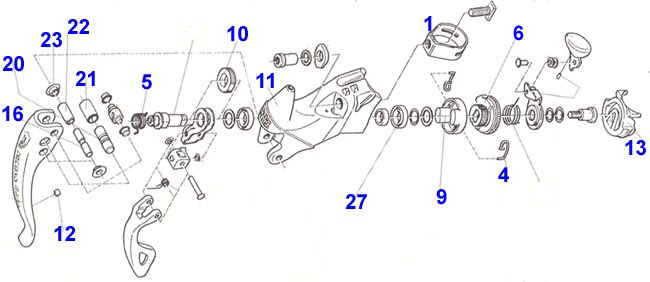

You may choose an Ergo part either from the written description or by the number on the generalized diagram above.
2) Follow the diagram number and description row on the chart below, until it intersects with your Ergo year and model column. That box contains our part number in bold black print. Our part number starts with LD and our price follows in US dollars.
For your reference, Campagnolo's part number is listed in bold green print.
Please use our part numbers when ordering. For extra clarity, you may include Campagnolo's part number in the "Description" box of our online, secure order form.

Please place your order via our Secure Server Link at the bottom of this page.

Parts NOT listed are no longer available.

Diagram Number \| \/	Ergo Lever Model ==> Part Description \| \/	Record	Chorus	Athena	Veloce Mirage
1	Steel handlebar clamp band, bolt, washer and 5 mm allen nut. Fits right and left Ergo levers.	LD-98-11 $19.88ea EC-RE103	LD-98-11 $19.88ea EC-RE103	LD-98-11 $19.88ea EC-RE103	LD-98-11 $19.88ea EC-RE103
4	G spring for your right, or rear derailleur side, carbon plastic body, shift lever. Also fits pre-1995 aluminum body, left, or front derailleur side, 7 and 8 speed Ergo levers. Sold individually but two are required.	LD-97-73 $4.88ea EC-RE209	LD-97-73 $4.88ea EC-RE209	LD-97-73 $4.88ea EC-RE209	LD-97-73 $4.88ea EC-RE209
4	G spring for your left, or front derailleur side, carbon plastic body, shift lever. Also fits pre-1995 aluminum body, right, or rear derailleur side, 7 and 8 speed Ergo levers. Sold individually but two are required.	LD-97-74 $4.88ea EC-RE210	LD-97-74 $4.88ea EC-RE210	LD-97-74 $4.88ea EC-RE210	LD-97-74 $4.88ea EC-RE210
5	Finger Shift Lever Return Spring for your right, or rear derailleur side, shift lever. We recommend replacing this part every 15,000 to 20,000 miles. Easy to install with a pair of needle nose pliers.	LD-98-07 $5.88ea EC-RE037	LD-98-07 $5.88ea EC-RE037	LD-98-07 $5.88ea EC-RE037	LD-98-07 $5.88ea EC-RE037
5	Finger Shift Lever Return Spring for your left, or front derailleur side, shift lever. We recommend replacing this part every 25,000 to 30,000 miles. Easy to install with a pair of needle nose pliers.	LD-98-08 $5.88ea EC-RE038	LD-98-08 $5.88ea EC-RE038	LD-98-08 $5.88ea EC-RE038	LD-98-08 $5.88ea EC-RE038
6	2001 to current Nine speed Ergo Index Gear for your right, or rear derailleur side, shift lever. We recommend replacing this part every 10,000 to 15,000 miles. Use with Campagnolo 2001 to current, 9 speed rear derailleurs. 8 speed Ergo gears are no longer available for original 8 speed levers. However we can convert a current 9 speed Ergo lever to 8 speed.	LD-99-54 $39.88ea EC-RE064	LD-99-54 $39.88ea EC-RE064	LD-99-54 $39.88ea EC-RE064	LD-99-54 $39.88ea EC-RE064
9	G Spring Carrier for your left, or front derailleur side, carbon body shift lever. We recommend replacing this part every 25,000 to 30,000 miles. Right side G spring carriers and ones for both sides aluminum body Ergo levers are no longer available.	LD-98-20 $7.88ea EC-RE112	LD-98-20 $7.88ea EC-RE112	LD-98-20 $7.88ea EC-RE112	LD-98-20 $7.88ea EC-RE112
10	Finger Shift Lever 8/9 speed Ratchet Ring for your right, or rear derailleur side, shift lever. We recommend replacing this part every 25,000 to 30,000 miles.	LD-97-16 $12.88ea EC-RE033	LD-97-16 $12.88ea EC-RE033	LD-97-16 $12.88ea EC-RE033	LD-97-16 $12.88ea EC-RE033
11	Carbon Ergo lever body for your right, or rear derailleur side, shift lever. Two models; one for use with cartridge bearings for Record and Chorus, another with brass bushings for Athena, Veloce and Mirage. White print says "Carbon BB System" for Record and Chorus. The lettering may be easily removed with wet/dry fine sandpaper. Athena, Veloce and Mirage are solid black.	LD-97-08 $39.88ea EC-RE031	LD-97-08 $39.88ea EC-RE031	LD-97-37 Dis continued EC-AT131	LD-97-37 Dis continued EC-AT131
11	Carbon Ergo lever body for your left, or front derailleur side, shift lever. Two models; one for use with cartridge bearings for Record and Chorus, another with brass bushings for Athena, Veloce and Mirage. White print says "Carbon BB System" for Record and Chorus. The lettering may be easily removed with wet/dry fine sandpaper. Athena, Veloce and Mirage are solid black.	LD-97-09 $39.88ea EC-RE032	LD-97-09 $39.88ea EC-RE032	LD-97-38 $24.88ea EC-AT132	LD-97-38 $24.88ea EC-AT132
12	Rubber Bumper Plug for Ergo brake levers. Acts as a shock absorber and prevents your finger shift lever from rattling against your Ergo brake lever. Sold individually; fits right or left lever. Also fits Record Aero brake levers.	LD-97-19 $2.88ea EC-RE030	LD-97-19 $2.88ea EC-RE030	LD-97-19 $2.88ea EC-RE030	LD-97-19 $22.88ea EC-RE030
13	Carbon Ergo lever body cap. The ones we have left require that a small notch be filed into one side to fit all right or left 8 speed Ergo lever bodies.	LD-98-28A $5.88ea EC-RE024	LD-98-28A $5.88ea EC-RE024	LD-98-28A $5.88ea EC-RE024	LD-98-28A $5.88ea EC-RE024
16	Brake Lever Pivot Pin - fits right and left Campagnolo Ergo and Campagnolo Aero Record brake levers.	LD-98-43 $5.88ea EC-RE046	LD-98-43 $5.88ea EC-RE046	LD-98-43 $5.88ea EC-RE046	LD-98-43 $5.88ea EC-RE046
20	Brake Lever Quick Release Push Pin - fits right and left Campagnolo Ergo and Campagnolo Aero Record brake levers.	LD-98-36 $5.88ea EC-RE045	LD-98-36 $5.88ea EC-RE045	LD-98-36 $5.88ea EC-RE045	LD-98-36 $5.88ea EC-RE045
21	Brake Lever Quick Release Push Pin Sleeve - fits right and left Campagnolo Ergo and Campagnolo Aero Record brake levers.	LD-98-71 $6.88ea EC-RE141	LD-98-71 $6.88ea EC-RE141	LD-98-71 $6.88ea EC-RE141	LD-98-71 $6.88ea EC-RE141
22	Brake Lever Pivot Pin Sleeve - fits right and left Campagnolo Ergo and Campagnolo Aero Record brake levers.	LD-98-70 $7.88ea EC-RE042	LD-98-70 $7.88ea EC-RE042	LD-98-70 $7.88ea EC-RE042	LD-98-70 $7.88ea EC-RE042
23	Brake Lever Pivot Pin Guide - fits right and left Campagnolo Ergo and Campagnolo Aero Record brake levers. Acts as a bushing and holder for the brake lever pivot pin. Two required for each brake lever. Sold individually.	LD-98-39 $5.88ea BL-RE009	LD-98-39 $5.88ea BL-RE009	LD-98-39 $5.88ea BL-RE009	LD-98-39 $5.88ea BL-RE009
27	Cartridge Bearing - fits right and left Campagnolo Record and Chorus Ergo levers. Press fits inside the carbon body. Easily installs by hand pressure. Two required per lever; sold individually.	LD-98-82 $12.88ea EC-RE026	LD-98-82 $12.88ea EC-RE026	N/A	N/A
