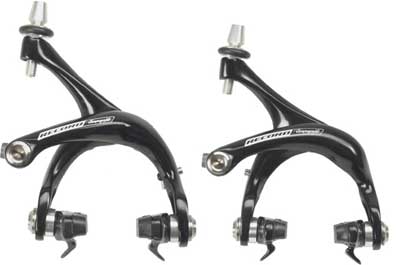

Record Rear Differential Caliper	Record Front Caliper

Campagnolo Record Brake Calipers:

In 2001 Campagnolo redesigned the rear brake caliper. They eliminated one pivot, redesigned the arms and reduced the weight by 11% or 40 grams. We found the new Differential rear brake to stop just as quickly as a Dual Pivot model. The braking action was slightly more responsive due to the lower weight of the Differential brake caliper. The front brake is unchanged and remains a dual pivot caliper.
Campagnolo brakes are precisely machined and beautifully finished.
Heat treated steel springs and hardware are carefully machined and then nickel chrome plated for greater durability.
Ten, tiny stainless steel ball bearings at each pivot point, provide silky smooth braking.
Titanium and aluminum alloy hardware reduces weight while maintaining strength and increasing corrosion resistance.
Just like Campagnolo crank arms, both aluminum alloy brake arms are cold forged for maximum stiffness and strength.
Campagnolo Record brake pads are the same as used for the year 2000 brakes. They are slightly longer than older Record and Chorus Dual Pivot pads and curved to fit your rims. An orbital washer/bolt assembly allows for simple brake pad toe in adjustments.
Campagnolo brake pads will last up to 5,000 miles if you keep them clean and properly adjusted. The rubber brake pad and alloy holder are separate units. Pad replacement is quick and simple.
The weight of a Record Differential rear caliper is just 160 grams. The Record front dual pivot caliper tips the scales at only 180 grams.
These brake calipers will fit all frames and forks designed for use with a recessed allen head, brake center bolt assembly. The reach on these brakes is adjustable from 39 to 50 mm.
Genuine Campagnolo replacement parts, cables and brake pads are available below.
The parts machined from titanium are:
eight brake pad nuts, two brake centerbolt 5 mm allen head fixing nuts and the both cable anchor bolt assemblies. The cable barrel adjusters, barrel nuts and several collars and nuts are machined from hardened aluminum alloy.
Only available as a set of two; a rear differential brake caliper and a front dual pivot brake caliper. Cables are NOT included.
We suggest using a Park Torque Wrench, for the most accurate installation. Campagnolo recommends the following torque specifications:
Brake Caliper Fixing Bolt (holds the caliper on your fork or rear bridge) - tighten to 10.0 Newton Meters (N.m) or 7.38 foot pounds.
Brake Pad Fixing Bolt - tighten to 8.0 Newton Meters (N.m) or 5.9 foot pounds.
Cable Clamp Bolt - tighten to 5.0 Newton Meters (N.m) or 3.69 foot pounds.
Made in Italy by Campagnolo and backed with a three year warranty.
Warranty service and help with technical questions is available from Camapgnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, email them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
Official product manuals and more product information is also available at Campagnolo.com .
The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.

Record Rear Differential Caliper	Record Front Caliper
Click on the photo to enlarge	Click on the photo to enlarge

Part #	Description	Normal Retail	Our Price USD$	You Save
BR-94-00	Record Brake Caliper Set, black rear differential and front dual pivot	$300.00	$289.88	$10.12
BR-92-04	Record Brake Caliper Set, silver rear differential and front dual pivot	$300.00	$289.88	$10.12
Click on the underlined text to order online via our Secure Order Form.

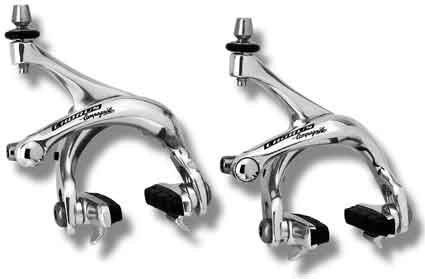

Chorus Dual Pivot Front and Differential Rear Caliper

Click on the photo to enlarge

Campagnolo Chorus Brake Calipers:

In 2001 Campagnolo redesigned the rear brake caliper and replaced the front one. They eliminated one pivot, redesigned the arms and reduced the weight by 11% or 40 grams. We found the new Differential rear brake to stop just as quickly as a Dual Pivot model. The braking action was slightly more responsive due to the lower weight of the Differential brake caliper.
Campagnolo brakes are precisely machined and beautifully finished.
Heat treated steel springs and hardware are carefully machined and then nickel chrome plated for greater durability.
Just like Campagnolo crank arms, both aluminum alloy brake arms are cold forged for maximum stiffness and strength.
Campagnolo Chorus brake pads are the same as used for the year 2000 brakes. They are slightly longer than older Record and Chorus Dual Pivot pads and curved to fit your rims. An orbital washer/bolt assembly allows for simple brake pad toe in adjustments.
Campagnolo brake pads will last up to 5,000 miles if you keep them clean and properly adjusted. The rubber brake pad and alloy holder are separate units. Pad replacement is quick and simple.
The weight of a Chorus Differential rear caliper is just 170 grams. The Chorus front dual pivot caliper tips the scales at only 190 grams. Neither uses any titanium nuts or bolts.
These brake calipers will fit all frames and forks designed for use with a recessed allen head, brake center bolt assembly. The reach on these brakes is adjustable from 39 to 50 mm.
Genuine Campagnolo replacement parts, cables and brake pads are available below.
Only available as a set of two; a rear differential brake caliper and a front dual pivot brake caliper. Cables are NOT included.
We suggest using a Park Torque Wrench, for the most accurate installation. Campagnolo recommends the following torque specifications:
Brake Caliper Fixing Bolt (holds the caliper on your fork or rear bridge) - tighten to 10.0 Newton Meters (N.m) or 7.38 foot pounds.
Brake Pad Fixing Bolt - tighten to 8.0 Newton Meters (N.m) or 5.9 foot pounds.
Cable Clamp Bolt - tighten to 5.0 Newton Meters (N.m) or 3.69 foot pounds.
Made in Italy by Campagnolo and backed with a three year warranty.
Warranty service and help with technical questions is available from Camapgnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, email them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
Official product manuals and more product information is also available at Campagnolo.com .
The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.

Compare: Record vs. Chorus Calipers

Record calipers have spring tension adjusters, ball bearings in the front caliper and a beefier pivot assembly than Chorus calipers.
Record calipers use titanium and aluminum alloy bolts, nuts and collars. Chorus calipers use chromed steel components to keep the cost down.
Record calipers are lighter and quicker acting than Chorus calipers.
Chorus calipers now use the same pads and arms as Record. They work well and are reasonably priced.

Part #	Description	Normal Retail	Our Price USD$	You Save
BR-94-01	Chorus Brake Caliper Set rear differential and front dual pivot	$200.00	$189.88	$10.12
Click on the underlined text to order online via our Secure Order Form.

Campagnolo Brake Parts, Cables, Pads and Tools:

We stock a wide range of genuine replacement parts, cables and pads for Campagnolo brakes. Click on the underlined text below to read more about:
Visit our Campagnolo Brake Parts page to read about replacement parts for 1994 to 1999 Campagnolo brakes.
Visit our Campagnolo Brake Parts page to read about replacement parts for year 2000 Campagnolo brakes.
Visit our Brake Cables page to read about brake cables and housing.
Visit our Brake Pads page to read about Campagnolo brake pads.
Visit our Brake Tools page to read about brake installation and maintenance tools.
