Built Wheels Section: Page 1

Click on an underlined item or scroll down this page to view everything.

Campagnolo Hyperon Tubular Wheels

Compare - Hyperon vs. Zipp 303 Wheels

Compare - Hyperon vs. Neutron Wheels

Spare Parts - Spokes, Skewers and Freehubs

Order online via our - Secure Order Form - and receive FREE...


Campagnolo Hyperon Wheels

Hyperon Front Hyperon Rear
Campy Hyperon Front Wheel
Click on the photo to enlarge

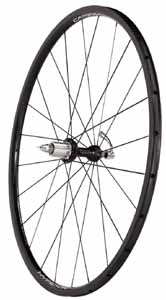

Campy Hyperon Rear Wheel
Click on the photo to enlarge
Campagnolo Hyperon Wheels:
  • Semi-aero, box section, full carbon fiber rims are exceptionally comfortable, responsive and long lasting.
  • Designed for the rigors of multi-day stage races like the Tour de France. Excellent for long rides, hill climbing and sprinting.
  • Available in a tubular tire version only.
  • Rear rim has asymmetric, 3 mm offset, drive side spoke holes which create a better balanced, stronger and more durable wheel. Overall dish is reduced, spoke tensions are similiar and lateral rigidity is greatly increased.
  • Constructed from carbon fiber and with FEM analysis for exceptional strength, minimal weight and maximum durability.
  • This rims braking tracks are precisely machined so both are perfectly parallel. They require special brake pads that fit Campagnolo RE700 holders. Two pairs, four pads total, are included with each set of wheels. Click on the underlined text to visit our Brake Pad page to see extra Campagnolo RE-701 Hyperon Brake Pads.
  • Carbon rims are feather light; they are ideal for any type of riding where you are either frequently climbing or accelerating.
  • 20 mm wide rim is standard for all new Campy rims and wheels; wheel changes are simple and no longer require brake adjustments.
  • User friendly; wheels are easy to true or repair. No need to return to the factory and endure long waiting times.
  • Detailed manual, deluxe carrying bag and a Record skewer are included with each wheel. Rear wheel also comes with a steel lock ring for 12 and 13 tooth starting position cassettes.
  • We suggest using Continental tubular glue and Le Tour Rim Cement Remover for installing tires on these fine wheels. Click on the underlined text to visit our Tire Care page to see a complete selection of Tire Care products.
  • All wheels are securely packed by our professional shipping staff.
  • Made in Italy by Campagnolo and backed with a 3 year replacement warranty.

Can I use these wheels with Campagnolo 8, 9 or 10 speed systems? How about Shimano 8, 9 and 10 speed systems?

Campagnolo hubs and wheels can be used with Camapagnolo 9 or 10 speed systems simply by slipping on a 9 or 10 speed Campagnolo cassette. You can use them with Campagnolo 8 speed systems by using a "loose cog" Camapagnolo 9 speed cassette and a Wheels Shift 8 spacing kit. Campagnolo wheels may also be used with Shimano rear derailleurs and STI shifters. Click on the underlined text to visit our Cassettes and Spacers catalog section for a detailed discussion of cassettes and spacing kits.


Hyperon Carbon Fiber Rim Closeup
Campy Hyperon Rim Closeup
Click on the photo to enlarge

  • Both front and rear rims have reinforced nipple washer seats, which evenly support spoke tensioning forces.
  • Straight pull spoke design is combined with spherical, self centering nipples and washers. Shearing stresses and breakage, common to the elbow section of normal spokes, are eliminated. The self locking, hardened 7075 alloy 5.5 mm nipple and Cromoly washer combination resists loosening even under very high loads. Spherical self centering washers always keep the spokes in a perfectly straight line and evenly distribute pedaling forces. These wheels hold their true beautifully.

  • The Record quality hub shells are constructed from carbon fiber to reduce weight and increase durability. The rear drive side flange is reinforced with an alloy insert so you can sprint as hard as you wish.
  • Hub components are Record quality and specifically designed for straight pull (HPW) spokes. They come with Record axles, races, bearings and quick release skewers.
  • Spokes are constructed from X12 CrNi Stainless Steel and are finished in black to match the rims and hubs.
  • Front and non-drive rear spokes are lighter gauge; they have a thinner cross-section, than the drive side rear to reduce weight without sacrificing strength.
  • 24 rear and 22 front, aerodynamic, bladed spokes cut through the wind and can add seconds to your best time.
  • Record 9/10 speed cassette body has a titanium pawl carrier to further reduce weight with no sacrifice in strength.
  • Also available with a steel cassette body that is perfectly machined to allow Shimano 8, 9 and 10 speed cassettes to slide right on. No spacing kits are required. The Shimano cassette body uses a Shimano lockring. You may switch between Campy and Shimano style bodies as well.

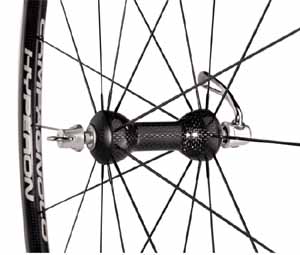

Hyperon Carbon Fiber Hub Closeup
Campy Hyperon Hub Closeup

Click on the photo to enlarge

Part
Number
Description Normal
Retail
Our Price
USD$
You
Save
WE-92-03A Hyperon Wheel Set, Tubular $2100.00pr $1999.88pr $100.12
WE-92-03 Hyperon Front Wheel, Tubular $1050.00ea $999.88ea $50.12
WE-92-04 Hyperon Campy 9/10 speed Rear Wheel, Tubular $1100.00ea 1049.88ea $50.12
WE-92-05 Hyperon Shimano 8/9/10 speed sp Rear Wheel, Tubular $1100.00ea $1049.88ea $50.12
Click on the underlined text to order online via our Secure Order Form.

Comparison: Campy Hyperon and Zipp 303 Wheels
  • Both are exceptionally aerodynamic and comfortable wheels. The Zipp 303 has a 38 mm deep section, the Hyperon has a slightly lower and boxier profile.
  • Both the Hyperon and Zipp 303 tubular wheels have feather light, all carbon rims. The Zipp 303 clincher uses a carbon/aluminum rim.
  • Hyperon's use 22 front and 24 rear, stainless steel, bladed spokes. Zipp employs 20 front and 28 rear ovalized stainless steel spokes.
  • Both Hyperon and Zipp 303 wheels are available with Campagnolo 9/10 speed or Shimano 8/9/10 speed cassette bodies.
  • Hyperon and Zipp 303 wheels are user friendly; easy to maintain or repair.
  • Hyperon tubulars weigh 1,240 grams per pair with skewers. Zipp 303 tubulars weigh 1,140 grams per pair with out skewers. Zipp 303 clinchers weigh 1,380 grams per pair with out skewers. Add 85 grams for a set of Zipp skewers.
  • Click on the underlined text to visit our Zipp 303 Tubular Wheels page to further contrast and compare Campagnolo Hyperon and Zipp 303 Tubular wheels.
    Click on the underlined text to visit our Zipp 303 Clincher Wheels page.
Comparison: Campy Neutron and Hyperon Weels
  • Both Neutrons and Hyperons have aerodynamic, bladed stainless steel straight pull spokes finished in black.
  • Neutron and Hyperon wheels share the same Record hub components, quick release skewers and number of spokes. Neutrons differ from Hyperons by:
  • Neutrons come with clincher or tubular tire rims in aluminum alloy. Hyperons use feather light carbon rims and come in a tubular tire version only.
  • Hyperons use a carbon fiber hub shell. Neutrons use a Record aluminum alloy hub shell that is black anodized.
  • Hyperon tubular wheels weigh an astounding 1240 grams per pair! Neutrons weigh 1580 grams per pair.
  • Hyperon wheels save most of their weight in the rims. Hyperon wheels accelerate and climb much more quickly than Neutrons or any conventional alloy rim wheels. They are fast and nimble.

Campagnolo Deluxe Wheel Bag
Campy Wheel Bag
Click on the photo to enlarge
Campagnolo Deluxe Wheel Bag
  • Excellent for storing or transporting an extra set of wheels. Keeps your wheels and anything they may come in contact with, clean and undamaged.
  • Heavy duty, Nylon Cordura fabric with reinforced axle panels will provide years of use.
  • Wide, 180 degree zipper allows even a rear wheel with a fully inflated tire to slide right in.
  • Interior pocket with a velcro closure holds skewers, tools or an extra cassette.
  • Fits one mountain, 650c or 700c front or rear road wheel with a mounted tire.
  • Included with all Campagnolo factory built wheels.
Part
Number
Description Normal
Retail
Our Price
USD$
You
Save
BG-98-00 Campagnolo Deluxe Wheel Bag $30.00ea $24.88ea $5.12
Click on the underlined text to order online via our Secure Order Form.

Campagnolo Factory Wheels - Spare Parts



Shipping Note:

Bulky items such as wheels cost more to ship and can take longer to arrive.
•Please allow 7-10 days for ground shipping, and 2-3 days for air.
•An additional $10 may be added for UPS ground or USPS Priority shipping, and $45 for UPS air.
