Hubs and Derailleurs Section: Page 3
Click on an underlined item or scroll down this page to view everything.
Order online via our
- Secure Order Form -
and receive FREE...
|

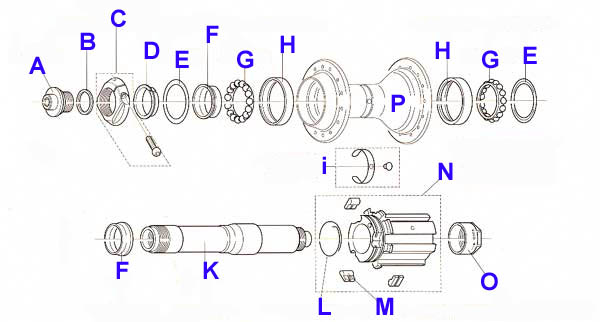

| Campagnolo 1999 to Current Rear Hub Parts |
|
Campagnolo 1999 to Current Rear Hub Parts
|
| Part # | Description | Normal Retail |
Our Price USD$ |
You Save |
|---|---|---|---|---|
| Parts for Record, Chorus and Centaur 1999 to Current Rear Hubs | ||||
| HU-98-69 |
A
- Record Rear Hub Fixing Bolt. Original replacement part for Chorus and Centaur rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$15.00 | $12.88 | $2.12 |
| HU-99-52 |
B
- Record Rear Hub Fixing Bolt Washer. Original replacement part for Chorus and Centaur rear hubs also. |
$4.00 | $2.88 | $1.12 |
| HU-99-63 |
C
- Record Rear Hub Alloy Adjusting Sleeve. Fits Chorus and Centaur rear hubs. May be filed to fit Bora, Neutron, Nucleon, Euros and Hyperon wheels. |
$30.00 | $24.88 | $5.12 |
| HU-90-80 |
C
- Chorus Rear Hub Alloy Adjusting Sleeve. Fits Record and Centaur front and rear hubs. May be filed to fit Bora, Neutron, Nucleon, Euros and Hyperon wheels. |
$30.00 | $24.88 | $5.12 |
| HU-90-81 |
C
- Centaur Rear Hub Nylon Adjusting Sleeve. Fits Record, Chorus and Daytona front and rear hubs. May be filed to fit Proton and Zonda wheels. |
$20.00 | $14.88 | $5.12 |
| HU-98-63 |
D
- Record Rear Hub Adjusting Cone. Original part for Record, Chorus and Daytona front and rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$15.00 | $9.88 | $5.12 |
| HU-98-66 |
E
- Record Rear Hub Grease Seal. Original part for Chorus, Centaur and Daytona front and rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$8.00 | $5.88 | $2.12 |
| HU-98-67 |
F
- Record Rear Hub Bearing Cone. Original part for Chorus, Centaur and Daytona front and rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$20.00 | $15.88 | $4.12 |
| HU-98-06 |
G
- Record Rear Hub Bearing Ring. Original part for Chorus, Centaur and Daytona front and rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$12.00 | $8.88 | $3.12 |
| BB-10-04 |
G
Le Tour 5/32" loose ball bearings. Replaces 15 original grade 25 ball bearings in Record, Chorus or Centaur hub bearing retainers. Bag of 75, grade 25 balls. Grade 25 means that deviation from a perfect sphere is less than .00025 inches. |
$15.00 | $9.88 | $5.12 |
| HU-98-68 |
H
- Record Rear Hub Bearing Cup. Original part for Chorus, Centaur and Daytona front and rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$20.00 | $14.88 | $5.12 |
| HU-99-51 |
i
- Record Rear Hub Center Grease port clip. Used on Record front hubs and Bora, Neutron, Nucleon and Euros wheels. |
$12.00 | $9.88 | $3.12 |
| HU-99-55 |
K
- Record Rear Hub Alloy Axle. Original part for Chorus, Centaur and Daytona rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$25.00 | $19.88 | $5.12 |
| FW-98-31 |
L
- Record Freehub Pawl Retainer Spring. Original part for Chorus, Centaur and Daytona freehubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda freehubs. Only 1 required. |
$8.00 | $5.88 | $2.12 |
| FW-98-32 |
M
- Record Freehub single Pawl. Original part for Chorus, Centaur and Daytona freehubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda freehubs. 3 required. |
$8.00 | $5.88 | $2.12 |
| FW-98-30 |
N
- Record Freehub Body, 9/10 speed for Campagnolo Cassettes. Comes with 3 pawls and spring. Fits Chorus, Centaur and Daytona rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$130.00 | $109.88 | $20.12 |
| FW-98-33 |
N
- Chorus Freehub Body, 9/10 speed for Campagnolo Cassettes. Comes with 3 pawls and spring. Fits Record, Centaur and Daytona rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$100.00 | $79.88 | $20.12 |
| FW-98-41 |
N
- Chorus Freehub Body, 8/9/10 speed for Shimano Cassettes. Comes with 3 pawls and spring. Fits Record, Centaur and Daytona rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$100.00 | $79.88 | $20.12 |
| HU-99-58 |
O
- Record Rear Hub Right Locknut. Original part for Chorus rear hubs and Bora, Neutron, Nucleon, Euros and Hyperon wheels. |
$20.00 | $14.88 | $5.12 |
| HU-99-58A |
O
- Centaur Rear Hub Right Locknut. Original part for Daytona rear hubs and Proton and Zonda wheels. |
$18.00 | $12.88 | $5.12 |
| HU-99-58B |
P
- Record Rear Hub Shell. 32 hole Comes with two pressed in bearing cups. |
$60.00 | $49.88 | $10.12 |
| HU-99-58C |
P
- Record Rear Hub Shell. 36 hole Comes with two pressed in bearing cups. |
$60.00 | $49.88 | $10.12 |
| HU-99-58D |
P
- Chorus/Centaur Rear Hub Shell. 32 hole Comes with two pressed in bearing cups. |
$50.00 | $39.88 | $10.12 |
| HU-99-58E |
P
- Chorus/Centaur Rear Hub Shell. 36 hole Comes with two pressed in bearing cups. |
$50.00 | $39.88 | $10.12 |
| Click on the underlined text to order online via our Secure Order Form. | ||||

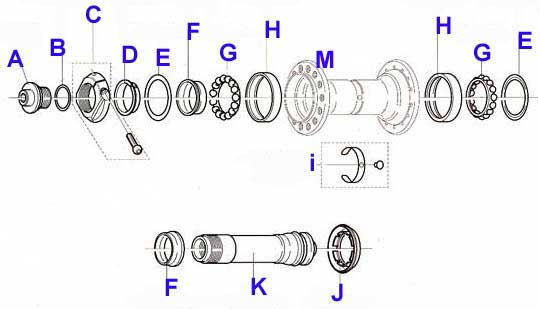

Campagnolo 1999 to Current Front Hub Parts
|
| Part # | Description | Normal Retail |
Our Price USD$ |
You Save |
|---|---|---|---|---|
| Parts for Record, Chorus and Centaur 1999 to Current Front Hubs | ||||
| HU-98-58 |
A
- Record Front Hub Fixing Bolt. Original replacement part for Chorus and Centaur front hubs and Bora, Neutron, Euros, Hyperon, Proton and Zonda wheels. |
$15.00 | $12.88 | $2.12 |
| HU-99-59 |
B
- Record Front Hub Fixing Bolt Washer. Original replacement part for Chorus and Centaur front hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$4.00 | $2.88 | $1.12 |
| HU-99-62 |
C
- Record and Chorus Front Hub, Alloy Adjusting Sleeve. Fits Centaur front and rear hubs also. May be filed to fit Bora, Neutron, Nucleon, Euros and Hyperon wheels. |
$30.00 | $24.88 | $5.12 |
| HU-90-81 |
C
- Centaur Front Hub Nylon Adjusting Sleeve. Fits Record, Chorus and Daytona front and rear hubs. May be filed to fit Proton and Zonda wheels. |
$20.00 | $14.88 | $5.12 |
| HU-98-63 |
D
- Record Front Hub Adjusting Cone. Original part for Record, Chorus and Daytona front and rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$15.00 | $9.88 | $5.12 |
| HU-98-66 |
E
- Record Front Hub Grease Seal. Original part for Chorus, Centaur and Daytona front and rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$8.00 | $5.88 | $2.12 |
| HU-98-67 |
F
- Record Front Hub Bearing Cone. Original part for Chorus, Centaur and Daytona front and rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$20.00 | $15.88 | $4.12 |
| HU-98-06 |
G
- Record Front Hub Bearing Ring. Original part for Chorus, Centaur and Daytona front and rear hubs and Bora, Neutron, Nucleon, Euros, Hyperon, Proton and Zonda wheels. |
$12.00 | $8.88 | $3.12 |
| BB-10-04 |
G
Le Tour 5/32" loose ball bearings. Replaces 15 original grade 25 ball bearings in Record, Chorus or Centaur hub bearing retainers. Bag of 75, grade 25 balls. Grade 25 means that deviation from a perfect sphere is less than .00025 inches. |
$15.00 | $9.88 | $5.12 |
| HU-98-68 |
H
- Record Front Hub Bearing Cup. Original part for Chorus, Centaur and Daytona front and rear hubs and Bora, Neutron, Nucleon, Euros, Proton and Zonda wheels. |
$20.00 | $14.88 | $5.12 |
| HU-99-51 |
i
- Record Front Hub Center Grease port clip. Used on Record front and rear hubs and Bora, Neutron, Nucleon and Euros wheels. |
$12.00 | $9.88 | $3.12 |
| HU-99-50 |
K
- Record Front Hub Alloy Axle. Original part for Chorus, Centaur and Daytona front hubs and Proton and Zonda wheels. |
$25.00 | $19.88 | $5.12 |
| FW-98-57 |
J
- Record Front Hub plastic dust cap. Original part for Chorus, Centaur and Daytona front hubs also. Only 1 required. |
$8.00 | $5.88 | $2.12 |
| Click on the underlined text to order online via our Secure Order Form. | ||||

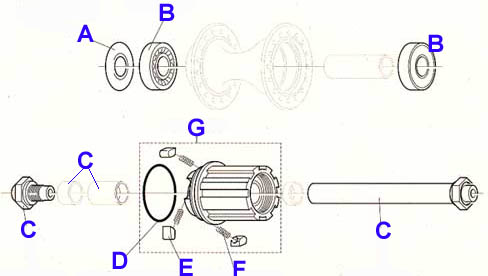

Campagnolo Veloce and Mirage, 1999 to Current Hub Parts
|
| Part # | Description | Normal Retail |
Our Price USD$ |
You Save |
|---|---|---|---|---|
| Parts for Veloce and Mirage 1999 to Current Rear Hubs | ||||
| HU-98-42A |
A
- Veloce/Mirage Rear Hub Bearing Washer Used for Scirocco factory rear wheels also. |
$8.00 | $5.88 | $2.12 |
| HU-98-42B |
B
- Veloce/Mirage Rear Hub Cartridge Bearing Used for Scirocco factory rear wheels also. One only. |
$12.00 | $9.88 | $2.12 |
| HU-98-42C |
C
- Veloce/Mirage Rear Hub complete Axle Used for Scirocco factory rear wheels also. |
$18.00 | $12.88 | $5.12 |
| HU-98-31 |
D
- Veloce/Mirage Freehub O ring Used for Scirocco factory rear wheels also. |
$7.00 | $4.88 | $2.12 |
| FW-98-04 |
E
- Veloce/Mirage Freehub Pawls Used for Scirocco factory rear wheels also. 3 required. |
$7.00 | $4.88 | $2.12 |
| FW-98-05 |
F
- Veloce/Mirage Freehub Pawl Springs Used for Scirocco factory rear wheels also. 3 required |
$5.00 | $2.88 | $2.12 |
| TL-98-41 |
Record Freehub Pawl Holder A handy tool used for Chorus, Athena and Veloce freehubs also. |
$8.00 | $5.88 | $2.12 |
| FW-98-42 |
G
- Veloce/Mirage Freehub Body with a complete axle Used for Scirocco factory rear wheels also. |
$60.00 | $49.88 | $10.12 |
| Parts for Veloce and Mirage 1999 to Current Front Hubs | ||||
| BB-10-03 |
B
- Le Tour Front Hub Loose Ball Bearings for Veloce and Mirage front hubs and Scirocco factory front wheels. Grade 25, better quality than original Campy ones. Bag 25. |
$10.00 | $7.88 | $2.12 |
| Click on the underlined text to order online via our Secure Order Form. | ||||
Campagnolo Hub Parts, Tools, Maintenance and Tool Use Tips:
|
