Headset, Seat Posts and Pedals Section: Page 12

Click on an underlined item or scroll down this page to view everything.

- Park Seat Post Tools -

- Park Pedal Tools -

- Park Pedal/Crank Arm Taps -

- Kingsbridge Premium Cutting Oil -

- Seat Post and Pedal Spare Parts -

Order online via our - Secure Order Form - and receive FREE...

Park 4-5-6 mm Allen Wrench Photo not to scale.	Park HXS-2 Allen Wrench Set with Holder Photo not to scale.

Seat Post Tools:

Our favorite tool for tightening seat post clamp bolts is the Park AWS-1 Y shaped hex wrench. It provides just enough leverage to tighten the bolt but not enough to strip it. The Park HXS-2 hex head wrench set is a better choice for the seat post cradle bolt.
We suggest getting the complete set of Park hex wrenches, Park HXS-2, with a holder. The holder stands alone or mounts easily to peg board or plywood. It prevents wrenches from getting lost and will help to keep your work area organized. The extra long handles are ideal for working on seat posts, handlebar stems and cranks. The Park HXS-2 set contains 2, 2.5, 3, 4, 5, 6, 8 and 10 mm hex head wrenches.
Warranty service and help with technical questions is available from Park Tool in Saint Paul, Minnesota USA. Call Park Tool at (651) 777-6868, e-mail them at Info@ParkTool.com or visit them at ParkTool.com by clicking on the underlined text .

Part #	Description	Normal Retail	Our Price USD$	You Save
TL-70-02	Park 4-5-6 mm Allen Wrench	$12.00	$9.88	$2.12
TL-74-69	Park HXS-2 Allen Wrench Set with Holder	$50.00	$39.88	$10.12
Click on the underlined text to order online via our Secure Order Form.

Good - Park HCW-6, 15 mm Pedal and 32 mm Headset Wrench
Park HCW-6 Tool

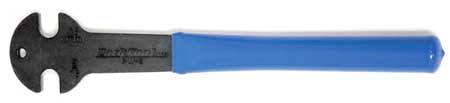

Better - Park PW-3 Pedal Wrench
Park PW-3 Tool

Pedal Tools:

Campagnolo, Shimano, Time, Look and most other pedal manufacturers require a 15 mm wrench to install or loosen their pedals from a crank arm. Older bicycles, especially ones made in England, often use a 9/16 wrench. Inexpensive bicycles and those for children with flat rubber tread pedals with chromed steel crank arms usually use a 1/2 inch wrench.
Park makes three good tools to install or remove pedals from your crank arm. The HCW-6 is ideal for light duty use. It has a 15 mm slot that fits most road pedals and a handy 32 mm open end for adjusting 1 inch threaded headsets.
The Park PW-3 shop quality pedal wrench is made from Cro-Moly steel and will provide years of service. Two precision openings; 15 mm and 9/16 inch fit almost all bicycle pedals. An extra long, round, vinyl dipped handle that provides good leverage and will not dig into your hand like flat pedal wrenches.
The new Park PW-4 Professional Pedal Wrench is designed for heavy shop use. Two 15 mm wrench openings are oriented at 30 and 45 degree angles so you can always achieve the best mechanical advantage, regardless of the pedal position.
The oversized, asymmetrical wrench head is made from investment cast Cro-Moly steel for superior strength and durability. While strong, the Park PW-4 pedal wrench is thin enough to access all pedal spindle flats.
An extra long 14 inch handle provides superb leverage to remove even the tightest pedals. The handle is round and vinyl-dipped so it won't dig into your hand or foot like flat pedal wrenches.
Most road or mountain pedals for alloy cranks use a 9/16 by 20 threads per inch, threading. Right or chain ring side pedals loosen by turning a pedal wrench to the left or counter-clockwise. Left side or non-drive pedals loosen by turning the pedal wrench in a clockwise direction.
For really stubborn pedals we place the bicycle solidly on the ground, squeeze the brake levers, put one foot on the pedal and then use our other foot to push down the Park PW-4 pedal wrench. If that does not work then we heat the pedal spindle with a propane torch, let it cool for an hour, apply Liquid Wrench and try again.
Warranty service and help with technical questions is available from Park Tool in Saint Paul, Minnesota USA. Call Park Tool at (651) 777-6868, e-mail them at Info@ParkTool.com or visit them at ParkTool.com by clicking on the underlined text .

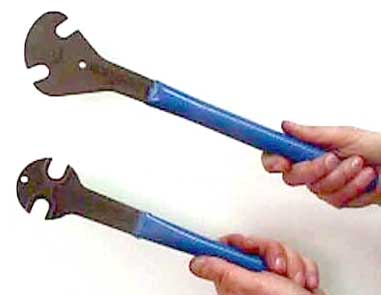

Best - Park PW-4 Pedal Wrench in use	Compare - PW-4 on top and the PW-3 on the bottom

Part #	Description	Normal Retail	Our Price USD$	You Save
TL-73-46	Park HCW-6, 32 mm Headset and 15 mm Pedal Wrench	$20.00	$15.88	$40.12
TL-72-76	Park PW-3 Pedal Wrench	$34.00	$26.88	$7.12
TL-72-81	Park PW-4 Pedal Wrench	$45.00	$34.88	$10.12
Click on the underlined text to order online via our Secure Order Form.

Park TAP-6C Pedal Taps

Park TAP-6C Taps

Park Pedal Taps:

Clean out or restore damaged threads in crank arms with these precision pedal taps from Park.
Machined from high carbon steel that is precision ground and hardened. Park pedal taps cut easily, will stay sharp for many years and fit all conventional tap handles.
The Park TAP-6C pedal taps are sold as a set of right and left hand threads in 9/16 of an inch x 20 threads to the inch, threading.
The Park TAP-3 pedal taps are sold as a set of right and left hand threads in 1/2 of an inch x 20 threads to the inch, threading.
Campagnolo, Shimano, Time, Look and most other pedal manufacturers use 9/16 of an inch x 20 threads per inch, pedal spindle/crank arm threading. Inexpensive bicycles and those for children with flat rubber tread pedals and chromed steel crank arms usually use 1/2 inch x 20 threads per inch, pedal spindle/crank arm threading.
Right or chain ring side pedals loosen by turning a pedal wrench to the left or counter-clockwise. Left side or non-drive pedals loosen by turning the pedal wrench in a clockwise direction. Pedal taps also have a left and right side and must be used accordingly. Use with foresight and caution or you could ruin your crank arm.
We suggest using Kingsbridge premium cutting oil with all cutting tools. Use it liberally for cleanest cuts, ease of operation and maximum tool life.
Proudly made in the USA by Park Tool.
Warranty service and help with technical questions is available from Park Tool in Saint Paul, Minnesota USA. Call Park Tool at (651) 777-6868, e-mail them at Info@ParkTool.com or visit them at ParkTool.com by clicking on the underlined text .

Part #	Description	Normal Retail	Our Price USD$	You Save
TL-71-50	Park TAP-6C Pedal Taps	$50.00	$39.88	$10.12
Click on the underlined text to order online via our Secure Order Form.

Kingsbridge Professional Cutting Tool Oil:

A premium quality oil that is easy to use and will help your tools last a lifetime.
Two blends; one for steel and titanium frames and another for aluminum frames.
Specifically designed for tapping and cutting tools.
Non-foaming; clings to surfaces and greatly reduces friction for clean and easy cutting.
Able to withstand heat buildup which is common as cutting tools wear.
Use this fine cutting oil liberally for maximum tool life.
A handy brush is built into the cap and makes an excellent oil applicator.
Large, 16 ounce can, will last for years.
Proudly made in the USA by Kingsbridge Cycle.

Part Number	Description	Our Price USD$	Normal Retail	You Save
LU-90-KS	Kingsbridge Steel Cutting Oil	$17.88	$20.00	$ 2.12
LU-90-KA	Kingsbridge Aluminum Cutting Oil	$17.88	$20.00	$ 2.12
Click on the underlined text to order online via our Secure Order Form.

Campagnolo Seat Post and Pedal Spare Parts:

We stock a wide range of replacement parts and accessories for Campagnolo seat posts and pedals. Click on the underlined text below to read more about:
Visit our Campagnolo Seat Post Parts page to read about replacement parts and accessories for Campagnolo seat posts.
Visit our Campagnolo Pedal Parts page to read about replacement parts and accessories for Campagnolo pedals.
