Campagnolo Seat Post Parts

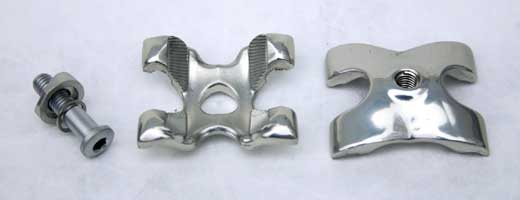

Campagnolo Seat Post Clamp Bolt and washer, lower and upper saddle clamps

Campagnolo Seat Post Parts

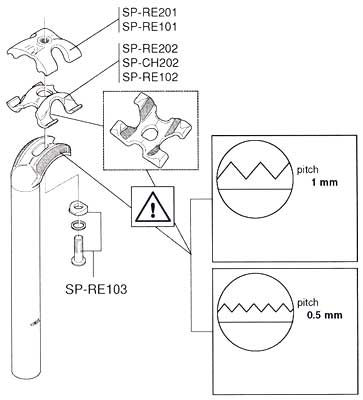

  • In 2004 Campagnolo changed the knurl pitch on its seat post and matching lower cradle from 1 mm to .5 mm. Pre 2004 seat post tops had approximately 42 knurls while newer models sport almost 86 knurls. You could also say that pre 2004 seat posts had 25 ridges to the inch while newer posts have almost 50 ridges to the inch.
  • The bolt and upper clamp pictured above may be used on any Campagnolo seat post from 1998 to current. In 2004 Record posts switched to a carbon fiber top cap but the dimensions remained the same as the silver alloy cap. The center bolt and washer remain unchanged for all seat post models from 1998 to current.
  • All lower cradles are made from aluminum alloy but some have finer teeth than others. In 2004 Record switched to a finer tooth lower cradle that was anodized black. Chorus also switched to a finer tooth pattern but the color remained silver. Cradles with different tooth patterns may NOT be interchanged. Do NOT use any grease in the seat post cradle and make sure the knurls are perfectly clean.
  • We suggest using a Park Torque Wrench, for the most accurate installation. Campagnolo recommends the following torque specifications:
    Campagnolo Seat Post cradle bolt - tighten to 22.0 Newton Meters (N.m) or 16.2 foot pounds
    Campagnolo Seat Post frame mounted clamp bolt - tighten to 10.0 Newton Meters (N.m) or 7.4 foot pounds

  • Record and Chorus carbon posts should only be used on bicycles that allow for the use of Campagnolo's slip on seat post clamp. Traditional seat clamps pinch a seat post unevenly and can cause it to deform. Campagnolo seat post clamps, pictured below, grip a seat post more evenly and allow it to retain its round shape. Record and Chorus 27.2 posts come with a 31.6 to 31.9 mm clamp. Record and Chorus 31.6 seat posts come with a 34.9 to 35.2 mm seat post clamp.
  • Campagnolo seat tube clamps are not required for Centaur or older Daytona seat posts.
  • We also stock Campagnolo traditional seat post clamping bolts that fit into your frame's seat lug. Pictured below, the Campagnolo seat binder bolt, is 8 mm in diameter and 19 mm long. It comes with a washer and is NOT keyed. We suggest always having an extra one on hand.
  • Warranty service and help with technical questions is available from Campagnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, e-mail them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
  • Official product manuals and more product information is also available at Campagnolo.com .
    The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.
Campagnolo Seat Post Clamp and traditional Bolt

Part # Description Normal
Retail		 Our Price
USD$		 You
Save
ST-98-12 Campy Seat Post Fixing Bolt and Washer
Fits ALL 1999 to current Campy seat posts.		 $30.00 $19.88 $10.12
ST-98-10 Campy Seat Post Upper Clamp
Fits ALL 1999 to current Campy seat posts.		 $40.00 $29.88 $10.12
ST-98-11 Campy Seat Post Lower Clamp
Silver, 1 mm pitch, 25 ridges to the inch.		 $50.00 $39.88 $10.12
ST-98-11A Campy Seat Post Lower Clamp
Silver, .5 mm pitch, 50 ridges to the inch.		 $60.00 $49.88 $10.12
ST-91-07 31.6 to 31.9 mm Offset Campy
seat post clamp for use with carbon posts.		 $30.00 $24.88 $5.12
ST-91-08 35.5 to 35.8 mm Offset Campy
seat post clamp for use with carbon posts.		 $30.00 $24.88 $5.12
ST-98-00 Campagnolo traditional seat tube
binder bolt, 8 x 19mm. Polished chrome.		 $20.00 $14.88 $5.12
Click on the underlined text to order online via our Secure Order Form.

Campagnolo Seat Post Tools:
  • We stock several tools for Campagnolo seat posts. Click on the underlined text below to read more about:
  • Visit our Seat Post Tools page to read about tools for maintenance of all seat posts.
