Campagnolo Record Track Crank Set:

Beautifully designed and machined. Weighs just 592 grams with 170 mm arms and a 49 tooth chain ring.
Designed with finite element analysis (FEM) and cold drop forged for maximum strength and performance.
Two of the five chainring fingers are part of the crank arm. This reduces weight and increases rigidity.
Both the crank arms and chain rings are precisely machined, polished and anodized for a beautiful and long lasting finish.
Requires a symmetrical, 111 mm Campagnolo or Phil Wood bottom bracket.
Comes with a 1/8 inch track pitch chain ring. The chain ring Bolt Circle Diameter (BCD) is 144 mm.
1/8 inch track pitch chain rings are 1/32 of an inch thicker than 3/32 pitch road chain rings. You must use an 1/8 inch track chain with 1/8 track rings. 144 mm Bolt Circle Diameter (BCD) road rings will also fit this track crankset. Use a standard 3/32 pitch road chain when using a road ring.
Record track cranksets come with 165 or 170 mm arms and with one of the following chain rings: 47, 48, 49, 50, 51 or 52 teeth.
The cro-moly steel chain ring bolts are beautifully detailed and chromed.
Each crank also comes with two aluminum dust covers and two 15mm hex head bolts.
We suggest using a Park Torque Wrench, for the most accurate installation. Campagnolo recommends the following torque specifications:
Chain Ring Bolts - tighten to 10.84 to 13.55 Newton Meters (N.m) or 8.0 to 10.0 foot pounds.
Crank Arm Fixing Bolts - tighten to 32.0 to 38.0 Newton Meters (N.m) or 23.6 to 28.0 foot pounds.
Track Pedals with Toe Straps - tighten to 45.0 Newton Meters (N.m) or 33.0 foot pounds.
The pedal holes are standard 9/16 of an inch threading and fit all road and track pedals.
Made in Italy by Campagnolo and backed with a three year warranty.
Warranty service and help with technical questions is available from Camapgnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, email them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
Official product manuals and more product information is also available at Campagnolo.com .
The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.

Part Number	Description	Our Price USD$	Normal Retail	You Save
CR-91-82(ring size)	Record Track, 165 mm arms, Track Crankset	$319.88	$340.00	$20.12
CR-91-83(ring size)	Record Track, 170 mm arms, Track Crankset	$319.88	$340.00	$20.12
Click on the underlined text to order online via our Secure Order Form.

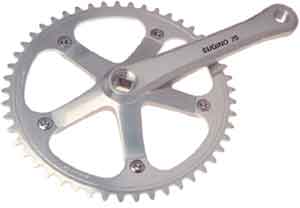

Sugino 75 Track Crankset:

Both the crank arms and chain ring are precisely machined, polished and anodized for a beautiful and long lasting finish.
Patented design calls for a Shimano taper, 109 or 110 mm bottom bracket. You may also use any 110 mm UN72, UN73, UN52 or UN53 bottom bracket.
The chain ring Bolt Circle Diameter (BCD) is 144 mm.
1/8 inch track pitch chain rings are 1/32 of an inch thicker than 3/32 pitch road chain rings. You must use an 1/8 inch track chain with 1/8 track rings. 144 mm Bolt Circle Diameter (BCD) road rings will also fit this track crankset. Use a standard 3/32 pitch road chain when using a road ring.
Sugino 75 track cranksets come with 165 or 170 mm arms and with a 49 tooth, 1/8 inch track pitch, chain ring.
The steel chain ring bolts are precisely machined and beautifully chromed.
Uses standard 14 or 15 mm hex head bottom bracket spindle bolts. Bolts are NOT included.
The pedal holes are standard 9/16 of an inch threading and fit all road and track pedals.
Made in Japan by Sugino and backed with a one year warranty.

Part Number	Description	Our Price USD$	Normal Retail	You Save
CR-10-11	Sugino Track, 165 mm arms Crankset	$199.88	$220.00	$20.12
CR-10-12	Sugino Track, 170 mm arms Crankset	$199.88	$220.00	$20.12
Click on the underlined text to order online via our Secure Order Form.

Campagnolo and Sugino Track Crank Parts and Tools:

We stock a full range of individual parts and components for Track cranksets. Click on the underlined text below to read more about replacement crankset parts.
Visit our Chains and Chain Rings Section to read about replacement chain rings and chain ring bolts.
Visit our Bottom Bracket Section to read about Campagnolo, Shimano and Phil Wood bottom brackets and installation tools.
Visit our Campy Crank Arms page to read about Campagnolo crank arm fixing bolts that also fit Sugino arms.
Visit our Shimano Crank Arms page to read about Shimano crank arm fixing bolts.
Visit our Crank Tools page to read about installation and maintenance tools.
