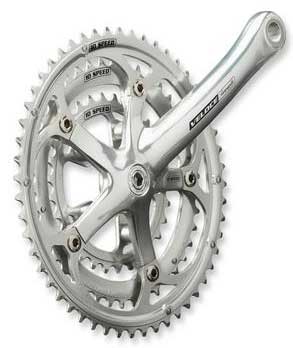

Campagnolo Veloce Triple 8/9 and 10 Speed Cranksets:

Campagnolo's inexpensive, light and durable triple ring crankset. It weighs just 731 grams for a 170 mm length crankset with 30/42/52 rings. Two models; one for 8 or 9 speed systems and another for 10 speed drivetrains.
Designed with finite element analysis (FEM) and cold drop forged for maximum strength and performance.
Both of the crank arms are precisely machined, polished and anodized for a beautiful and long lasting finish. Except for the graphics, Veloce Triple uses the same arms as the Centaur Triple crankset.
Wider profile requires a symmetrical 111 or 115 mm Campagnolo or Phil Wood bottom bracket.
Bottom bracket length is dependant upon the diameter of your seat tube where the front derailleur mounts. If you have a 28.6 mm (1 1/8 inches) then you must use the 111 mm bottom bracket. If your seat tube is a 32 mm (1 1/4 inches) or a 35 mm (1 3/8 inches)diameter seat tube then you must use a 115 mm bottom bracket.
The chain rings are stamped and have a rougher finish than Centaur.
Both the middle and outer rings have steel chain pick up pins and machined ramps for quick and smooth shifting. The chain ring Bolt Circle Diameter (BCD) is 135 mm for the outer two rings and 74 mm for the innermost ring.
Veloce Triple cranksets come with 170 or 175 mm arms and with the following chain ring combination: 30/42/52. We suggest going with a 175 mm arm if you are currently riding with 172.5 mm arms.
Each crank also comes with two 8 mm allen head bottom bracket bolts. You will still need a crank remover to take the installed arms off of your bike.
We suggest using a Park Torque Wrench, for the most accurate installation. Campagnolo recommends the following torque specifications:
Chain Ring Bolts - tighten to 10.84 to 13.55 Newton Meters (N.m) or 8.0 to 10.0 foot pounds.
Crank Arm Fixing Bolts - tighten to 32.0 to 38.0 Newton Meters (N.m) or 23.6 to 28.0 foot pounds.
Campagnolo Pro-Fit series pedal - tighten to 40.0 Newton Meters (N.m) or 29.5 foot pounds.
The pedal holes are standard 9/16 of an inch threading and fit all road and track pedals.
Made in Italy by Campagnolo and backed with a three year warranty.
Warranty service and help with technical questions is available from Camapgnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, email them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
Official product manuals and more product information is also available at Campagnolo.com .
The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.

Part Number	Description	Our Price USD$	Normal Retail	You Save
CR-91-77	Veloce 170 mm, 30-42-52, 8/9 speed Crankset	$119.88	$140.00	$20.12
CR-91-78	Veloce 175 mm, 30-42-52, 8/9 speed Crankset	$119.88	$140.00	$20.12
CR-94-37	Veloce 170 mm, 30-42-52, 10 speed Crankset	$159.88	$180.00	$20.12
CR-94-38	Veloce 175 mm, 30-42-52, 10 speed Crankset	$159.88	$180.00	$20.12
Click on the underlined text to order online via our Secure Order Form.

Triple Crankset Upgrade, 8/9 or 10 speed...

The hills only get steeper with each passing season!

To upgrade your Campy 8 or 9 speed double chainring gruppo to a triple you will need:
A triple chainring, 8/9 speed, crank, triple front and rear, 8/9 speed derailleurs and usually a new bottom bracket.
Bottom bracket length must match your front derailleur clamp size for all Campy 8/9 speed triple cranks and Centaur and Veloce 10 speed triple cranks. 28.6 clamp-on front derailleurs and braze-on models require a 111 mm bottom bracket, 31.8 and 35 mm mm clamp-on front derailleurs require the longer, 115mm bottom bracket.
Campagnolo 8/9 speed three ring cranks will not work with a 10 speed triple drivetrain.

To upgrade your Campy 10 speed double chainring gruppo to a triple you will need:
A 10 speed triple chainring crank, a matching bottom bracket and a 10 speed triple front derailleur.
You may use a medium length cage, 10 speed, rear derailleur if your largest rear cassette cog is 26 teeth or less. A long cage, 10 speed rear derailleur will be required if you want to use a rear cassette cog larger than 26 teeth. Why? The longer cage is needed to pick up the slack in your chain when you are on the smallest chain ring and the smaller cassette cogs.
Campagnolo 10 speed triple cranks will not work with an 8/9 speed triple drivetrain.

All Campy ErgoPower, Bar End and Down Tube shifters will work with a triple front derailleur.

Campagnolo Veloce Two Ring 8/9 and 10 Speed Cranksets:

Impressively light; weighs just 659 grams for a 170 mm crankset with 39/53 rings. Two models; one for 8 or 9 speed systems and another for 10 speed drivetrains.
Designed with finite element analysis (FEM) and cold drop forged for maximum strength and performance.
Both the crank arms are precisely machined, polished and anodized for a beautiful and long lasting finish. Except for the graphics, they are identical to Centaur arms.
Wider profile requires a symmetrical 111 or 115 mm Campagnolo or Phil Wood bottom bracket.
Bottom bracket length is dependant upon the diameter of your seat tube where the front derailleur mounts. If you have a 28.6 mm (1 1/8 inches) then you must use the 111 mm bottom bracket. If your seat tube is a 32 mm (1 1/4 inches) or a 35 mm (1 3/8 inches)diameter seat tube then you must use a 115 mm bottom bracket.
The chain rings are stamped and have a rougher finish than Centaur.
The outer ring has steel chain pick up pins and machined ramps for quick and smooth shifting. The chain ring Bolt Circle Diameter (BCD) is 135 mm.
Veloce cranksets come with 170, 172.5 and 175 mm arms and with a 39/53 chain ring combination only.
Each crank also comes with two 8 mm allen head bottom bracket bolts. You will still need a crank remover to take the installed arms off of your bike.
We suggest using a Park Torque Wrench, for the most accurate installation. Campagnolo recommends the following torque specifications:
Chain Ring Bolts - tighten to 10.84 to 13.55 Newton Meters (N.m) or 8.0 to 10.0 foot pounds.
Crank Arm Fixing Bolts - tighten to 32.0 to 38.0 Newton Meters (N.m) or 23.6 to 28.0 foot pounds.
Campagnolo Pro-Fit series pedal - tighten to 40.0 Newton Meters (N.m) or 29.5 foot pounds.
The pedal holes are standard 9/16 of an inch threading and fit all road and track pedals.
Made in Italy by Campagnolo and backed with a three year warranty.
Warranty service and help with technical questions is available from Camapgnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, email them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
Official product manuals and more product information is also available at Campagnolo.com .
The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.

Part Number	Description	Our Price USD$	Normal Retail	You Save
CR-91-74	Veloce 170 mm, 39-53, 8/9 speed Crankset	$99.88	$120.00	$20.12
CR-91-75	Veloce 172.5 mm, 39-53, 8/9 speed Crankset	$99.88	$120.00	$20.12
CR-91-76	Veloce 175 mm, 39-53, 8/9 speed Crankset	$99.88	$120.00	$20.12
CR-94-34	Veloce 170 mm, 39-53, 10 speed Crankset	$139.88	$160.00	$20.12
CR-94-35	Veloce 172.5 mm, 39-53, 10 speed Crankset	$139.88	$160.00	$20.12
CR-94-36	Veloce 175 mm, 39-53, 10 speed Crankset	$139.88	$160.00	$20.12
Click on the underlined text to order online via our Secure Order Form.

Campagnolo Veloce Crank Parts and Tools:

We stock a full range of individual parts and components for Campagnolo cranksets. Click on the underlined text below to read more about replacement crankset parts.
Visit our Chains and Chain Rings Section to read about replacement chain rings and chain ring bolts.
Visit our Bottom Bracket Section to read about Campagnolo and Phil Wood bottom brackets and installation tools.
Visit our Crank Arms page to read about individual replacement crank arms and crank arm fixing bolts.
Visit our Crank Tools page to read about installation and maintenance tools.
