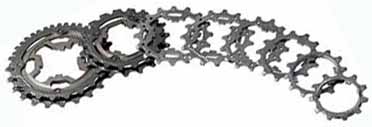

Campagnolo Record 10 Speed Ti MK2 Cassettes:

Titanium cogs and alloy carriers reduce weight while creating a stiffer and more responsive cassette.
Available in an all cogs titanium version or with the last 4 cogs in titanium and the remainder in nickel chrome steel.
Heat treated cogs are precisely machined and polished. Steel cogs are hardened and nickel chrome plated for smoother shifting and greater durability.
All steel cogs have a hardened chrome, satin silver finish for longer wear.
Campagnolo designates any 9 or 10 speed cassette that uses cogs bolted to alloy carriers as MK 2 cassettes. Non MK 2 cassettes are simply 8 or 9 individual cogs separated by resin spacers.
Each cog has an indented ramp, called Ultra Drive, to assist in up shifting. Tooth profiles are also custom configured to help with down shifting.
For best shifting use Campagnolo's 10 speed cassettes with a Campagnolo 10 speed rear derailleur and a Campagnolo 10 speed chain.
Record 10 speed Ti/steel cassettes can last up to 7,000 miles if you keep them clean and well lubricated. The all cogs titanium model wears a little quicker, especially on the smaller cogs.
For longest life and smoothest shifting we recommend using Le Tour Chain Lube on these premium cassettes.
Campagnolo 10 speed cassette cogs technical information:
Each cog is 1.70 mm thick. Campy uses 2.42 mm alloy spacers and spaces their cogs 4.12 mm on center. That is to say that the distance from the center of one cog to the center of the adjoining cog, measured from the center of the first cog to the center of the second cog, is 4.12 mm. The inside diameter of each alloy spacer is 35.1 mm.
Each cassette comes with 10 cogs and 5 alloy spacers. A 27.0 mm, outside diameter steel lockring, is ONLY included with cassettes that start with an 11 tooth cog. All other sizes do NOT come with a lockring.
These cassettes will fit all Campy 9 and 9/10 speed hubs from 1997 to the present.
The weight of a 12-23 Record MK 2 10 speed 4 cogs Ti cassette with out a lockring is just 167 grams. The all cogs titanium version in 12-23 weighs only 137 grams with out a lockring.
Titanium cogs are listed in bold type. Cogs that are bolted together and mounted on an alloy carrier are surrounded by brackets like { }. ALL of the cassettes listed below come with Ultra drive cogs and are current models.

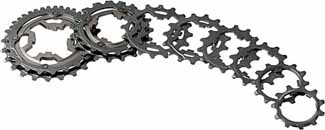

Sizes available with all cogs in titanium are:

11 - 12 - 13 - 14 - 15 - 16 - {17 - 19} - {21 - 23}
The 11 tooth cog above only comes in steel.

12 - 13 - 14 - 15 - {16 - 17} - {19 - 21} - {23 - 25}
13 - 14 - 15 - 16 - {17 - 18} - {19 - 21} - {23 - 26}

Sizes available with 4 cogs in titanium are:

11 - 12 - 13 - 14 - 15 - 16 - {17 - 18} - {19 - 21}
11 - 12 - 13 - 14 - 15 - 16 - {17 - 19} - {21 - 23}
12 - 13 - 14 - 15 - 16 - 17 - {18 - 19} - {21 - 23}
12 - 13 - 14 - 15 - {16 - 17} - {19 - 21} - {23 - 25}
13 - 14 - 15 - 16 - {17 - 18} - {19 - 21} - {23 - 26}
13 - 14 - 15 - 16 - {17 - 19} - {21 - 23} - {26 - 29}
Made in Italy by Campagnolo and backed with a three year warranty.
Warranty service and help with technical questions is available from Camapgnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, email them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .

Part #	Description	Normal Retail	Our Price USD$	You Save
FW-90-26	Record 9 Cogs Ti, 11-23, 10 Speed UD Cassette	$400.00	$369.88	$30.12
FW-90-27	Record All Cogs Ti, 12-25, 10 Speed UD Cassette	$440.00	$399.88	$40.12
FW-90-28	Record All Cogs Ti, 13-26, 10 Speed UD Cassette	$440.00	$399.88	$40.12
FW-90-21	Record 4 Cogs Ti, 11-21, 10 Speed UD Cassette	$250.00	$229.88	$20.12
FW-90-22	Record 4 Cogs Ti, 11-23, 10 Speed UD Cassette	$250.00	$229.88	$20.12
FW-90-16	Record 4 Cogs Ti, 12-23, 10 Speed UD Cassette	$250.00	$229.88	$20.12
FW-90-23	Record 4 Cogs Ti, 12-25, 10 Speed UD Cassette	$250.00	$229.88	$20.12
FW-90-24	Record 4 Cogs Ti, 13-26, 10 Speed UD Cassette	$250.00	$229.88	$20.12
FW-90-25	Record 4 Cogs Ti, 13-29, 10 Speed UD Cassette	$290.00	$259.88	$30.12
Click on the underlined text to order online via our Secure Order Form.

EXA Drive and Ultra Drive - How they differ...

EXA Drive and Ultra Drive

The above photo shows an EXA Drive cog on the left and a new 10 speed, Ultra Drive cog on the right. Note how the two step, machined indentation slightly varies between both cogs. The "O" stamping plays no mechanical role; it is there only as a visual indicator for proper cog stacking.
This machined indentation is responsible for helping to pick up your chain when you up shift, and move it on to the next cog. EXA Drive indentations were originally designed for Campy 8 speed chains and cassettes back in the mid 1990's. It is designed to engage the chain rivet head first and then the outside chain plate. EXA Drive works very well with both 8 and 9 speed systems.
Campagnolo 10 speed chains do not have protruding rivet heads and pose a problem for EXA Drive. Thus the invention of Ultra Drive. The Ultra Drive indentation is designed to catch the chain's outer plate and assist the chain up to the next cog.
In early spring 2000, Campagnolo quietly started to introduce Ultra Drive cogs on all of their 10 speed cassettes. In late 2000 they made it official and raised the price to cover the new design and machining costs.
Ultra Drive is essential for smooth shifting on 10 speed sytems. It is also designed to work with all Campy 9 speed systems and chains. We noticed a large improvement in shifting with 10 speeds but only a slight difference with 9 speed systems. Both EXA Drive and Ultra Drive cassettes work perfectly with all past and current Campagnolo 9 speed systems. You can even mix Ultra Drive and Exa Drive cogs on a cassette.

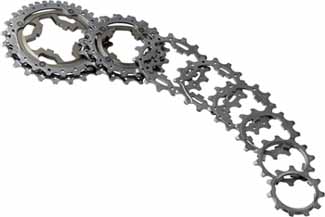

Campagnolo Chorus 10 Speed MK2 Cassettes:

Hardened, nickel chromed cogs and alloy carriers reduce weight while creating a stiffer and more responsive cassette.
Heat treated steel cogs are precisely machined and nickel chrome plated for smooth shifting and excellent wear.
All cogs have a hardened chrome, satin silver finish for longer wear. This is the same heat treatment and finish that is now applied to all of the Record 10 speed steel cassette cogs.
Campagnolo designates any 9 or 10 speed cassette that uses cogs bolted to alloy carriers as MK 2 cassettes. Non MK 2 cassettes are simply 8 or 9 individual cogs separated by resin spacers.
Each cog has an indented ramp, called Ultra Drive, to assist in up shifting. Tooth profiles are also custom configured to help with down shifting.
2001 to current models use Ultra Drive cogs; 2000 models use a combination of EXA and Ultra drive cogs. The spacing is identical and both will shift flawlessly with current or older Campagnolo 10 rear derailleurs and Ergo 10 speed levers or 10 speed Bar End shifters.
Chorus 10 speed MK 2 cassettes can last up to 8,000 miles if you keep them clean and well lubricated.
For longest life and smoothest shifting we recommend using Le Tour Chain Lube on these premium cassettes.
Campagnolo 10 speed cassette cogs technical information:
Each cog is 1.70 mm thick. Campy uses 2.42 mm alloy spacers and spaces their cogs 4.12 mm on center. That is to say that the distance from the center of one cog to the center of the adjoining cog, measured from the center of the first cog to the center of the second cog, is 4.12 mm. The inside diameter of each alloy spacer is 35.1 mm.
Each cassette comes with 10 cogs and 5 alloy spacers. A 27.0 mm, outside diameter steel lockring, is ONLY included with cassettes that start with an 11 tooth cog. All other sizes do NOT come with a lockring.
These cassettes will fit all Campy 9 and 9/10 speed hubs from 1997 to the present. They will shift flawlessly with any 10 speed model, Campagnolo Ergo shifter or rear derailleur.
The weight of a 11-23 Chorus MK 2 10 speed cassette with out a lockring is just 199 grams.
Cogs that are bolted together and mounted on an alloy carrier are surrounded by brackets like { }. All sizes are available with Ultra Drive cogs.

Sizes available are:

11 - 12 - 13 - 14 - 15 - 16 - {17 - 19} - {21 - 23}
12 - 13 - 14 - 15 - {16 - 17} - {19 - 21} - {23 - 25}
13 - 14 - 15 - 16 - {17 - 18} - {19 - 21} - {23 - 26}
13 - 14 - 15 - 16 - {17 - 19} - {21 - 23} - {26 - 29}
Made in Italy by Campagnolo and backed with a three year warranty.
Warranty service and help with technical questions is available from Camapgnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, email them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .

Part #	Description	Normal Retail	Our Price USD$	You Save
FW-90-30	Chorus 11-23, 10 Speed UD Cassette	$150.00	$139.88	$10.12
FW-90-31	Chorus 12-25, 10 Speed UD Cassette	$140.00	$129.88	$10.12
FW-90-32	Chorus 13-26, 10 Speed UD Cassette	$140.00	$129.88	$10.12
FW-90-33	Chorus 13-29, 10 Speed UD Cassette	$150.00	$139.88	$10.12
Click on the underlined text to order online via our Secure Order Form.

Campagnolo Record and Chorus Cassette Parts and Tools:

We stock a wide range of individual cogs, spacers and lock rings for Campagnolo cassettes. Click on the underlined text below to read more about replacement cassette parts.
Visit our Campagnolo 10 Speed Cog Cassette page to read about replacing individual cogs.
Visit our Cassette Lock Rings page to read about Campagnolo lock rings.
Visit our Cassette Spacers page to read about Campagnolo cassette spacers.
Visit our Cassette Tools page to read about Campagnolo and Park cassette installation and maintenance tools.
Visit our Cassette Spacing Kits page to read about using Shimano 9 speed cassettes with Campagnolo 9 or 10 speed Ergo shifters and rear derailleurs.
Visit our Wheels Mfg Cassette page to read about using Shimano rear hubs and Wheels Mfg cassettes with Campagnolo 9 or 10 speed Ergo shifters and rear derailleurs.
