Campagnolo Record Ergo Levers, Genuine Spare Parts

How to locate and order Campagnolo Ergo parts...

1) Locate the Ergo model you have in the top row of the chart below. Is it a Record, Chorus, etc? This chart only covers year 1999 to current Campagnolo Ergo parts. You may cross reference this section with official Campagnolo part diagrams to see which parts are the same.
You may choose an Ergo part either from the written description or by the number on the generalized diagram above.
2) Follow the diagram number and description row on the chart below, until it intersects with your Ergo year and model column. That box contains our part number in bold black print. Our part number starts with LD and our price follows in US dollars.
For your reference, Campagnolo's part number is listed in bold green print.
Please use our part numbers when ordering. For extra clarity, you may include Campagnolo's part number in the "Description" box of our online, secure order form.

Please place your order via our Secure Server Link at the bottom of this page.



Diagram Number \| \/	Ergo Lever Model ==> Part Description \| \/	Record	Chorus	Daytona Centaur	Veloce Mirage
7	Central Pivot Shaft - fits both right and left ergo levers. Record/Chorus uses an alloy model while Centaur, Daytona, Veloce and Mirage use a heavier, steel central pivot. Both are interchangeable.	LD-98-76 $19.88ea EC-RE435	LD-98-76 $19.88ea EC-RE435	LD-90-23 $12.88ea EC-VL036	LD-90-23 $12.88ea EC-VL036
8	Finger Shift Lever assembly for your right, or rear derailleur side, shift lever. All right side models are interchangeable; only the finish and materials differ. Record has a Carbon weave, Chorus is silver alloy with a triangular cut-out, Centaur/Daytona and Veloce/Mirage are solid alloy as pictured above.	LD-98-56 $59.88ea EC-RE328	LD-97-26 $49.88ea EC-RE228	LD-97-28 $39.88ea EC-CH228	LD-97-28 $39.88ea EC-CH228
8	Finger Shift Lever assembly for your left, or front derailleur side, shift lever. All right side models are interchangeable; only the finish and materials differ. Record has a Carbon weave, Chorus is silver alloy with a triangular cut-out, Centaur/Daytona and Veloce/Mirage are solid alloy as pictured above.	LD-98-57 $59.88ea EC-RE329	LD-97-27 $49.88ea EC-RE229	LD-97-29 $39.88ea EC-CH229	LD-97-29 $39.88ea EC-CH229
9	Ultra Ten (10) speed Ergo Index Gear for your right, or rear derailleur side, shift lever. We recommend replacing this part every 10,000 to 15,000 miles. Use with Campagnolo 10 speed or 2001 to current 9 speed rear derailleurs ONLY. Now comes with a Teflon grey anti-friction coating and is drilled out to save weight. Click on the underlined text to see Ergo Gear conversion tips. Note the raised "10" on the dog-ear portion of the gear.	LD-97-49 $49.88ea EC-RE161	LD-97-49 $39.88ea EC-RE161	LD-97-49 $49.88ea EC-RE161	LD-97-49 $49.88ea EC-RE161
9	Ultra Carbon G Spring Carrier Teflon Coated Bushing - for your right, or rear derailleur side, shift lever. Fits Ultra Carbon G Spring Carriers ONLY.	LD-90-62 $2.88ea EC-RE157	LD-90-62 $2.88ea EC-RE157	LD-90-62 $2.88ea EC-RE157	LD-90-62 $2.88ea EC-RE157
9	Ultra Carbon G Spring Carrier for your right, or rear derailleur side, shift lever. We recommend replacing this part every 15,000 to 20,000 miles. Note the reinforced spring post where it emerges from the carrier ring. Must be used with the matching Teflon washer, part number LD-90-62.	LD-97-45 $14.88ea EC-RE065	LD-97-45 $14.88ea EC-RE065	LD-97-45 $14.88ea EC-RE065	LD-97-45 $14.88ea EC-RE065
9	Alloy G Spring Carrier for your right, or rear derailleur side, shift lever. We recommend replacing this part every 15,000 to 20,000 miles. Note the reinforced spring post where it emerges from the carrier ring.	LD-97-30 $9.88ea EC-RE111	LD-97-30 $9.88ea EC-RE111	LD-97-30 $9.88ea EC-RE111	LD-97-30 $9.88ea EC-RE111
9	Alloy G Spring Carrier for your left, or front derailleur side, shift lever. We recommend replacing this part every 25,000 to 30,000 miles.	LD-98-20 $7.88ea EC-RE112	LD-98-20 $7.88ea EC-RE112	LD-98-20 $7.88ea EC-RE112	LD-98-20 $7.88ea EC-RE112

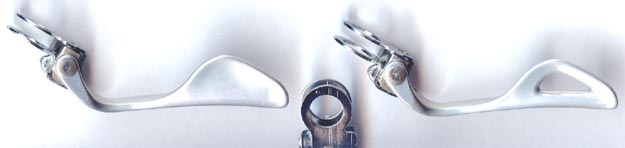

Chorus and Centaur finger shift levers have triangular cut-outs. Veloce and Mirage do not. All 1999 to current Finger Shift Lever models are interchangeable. Left and right finger shift levers are distinct though.
Click on the underlined text to order online via our Secure Order Form.

Ergo Index Gear conversions made easy...

You may convert any 1999 to current, Campagnolo right side Ergo shift lever to shift with any Campagnolo 8, 9 or 10 speed rear derailleur.
Campagnolo 1999 to current, 9 speed Ergo levers may be converted to 8 speed, pre-2001 9 speed or 2001+ 9 speed by simply replacing the Ergo Index gear.
Note: Pre-2001 8 and 9 speed rear derailleurs have a "B" adjusting screw that is under the frame hanger bolt and rests against the frame dropout. 2001 to current rear derailleurs have the "B" adjusting screw mounted on the rear derailleur body where it rests against the jockey wheel cage.
Campagnolo 1999 to current, 9 speed Ergo right levers may be converted to 10 speed by replacing the Ergo Index Gear and the right Ratchet Ring which has wider teeth that match the 10 speed Ergo Index Gear.
Campagnolo 10 speed Ergo right levers may be converted to 8 or 9 speed by replacing the Ergo Index Gear and the right Ratchet Ring which has finer teeth that match the 8 or 9 speed Ergo Index Gears.
We recommend replacing both G springs whenever you install a new Ergo Index Gear in an Ergo lever.
