TA rings to fit Shimano

Click on the photo to enlarge

• Satin silver anodized finish. The outermost ring comes with pickup pins. For smoothest shifting we recommend keeping the outer ring no more than 14 teeth bigger than the inner ring.
• The 39, 40, 41, 42, 43 and 44 tooth rings are inner chainrings for two ring cranks. 45 tooth and larger rings are outer chainrings for two or three ring cranks. Designed for use with 7, 8 and 9 speed Shimano drive trains.
• Machined from 7000 series aluminum alloy. 130 mm bolt circle diameter. Excellent quality and beautifully finished. Made in France.

Salsa 130 BCD Chainrings

Click on the photo to enlarge

• Precisely machined from 7075 aluminum alloy for exceptional durability and performance.
• Ideal for USCF Junior gearing. Or mix and match to create the perfect combination for your riding needs.
• These rings are not ramped or pinned to assist in shifting. We suggest keeping the difference between your small and big rings under 14 teeth for smoothest shifting.
• Available in 45, 53 and 54 tooth sizes for use as an outer chainring on two or three ring cranks.
• It is ok to mix and match different Salsa rings. Shifting is precise everytime.
• May be used with 7/8 or 9 speed, double or triple ring, Shimano and all other 130 BCD cranks. Made in the USA by Salsa Cycles.

TA 74 BCD Chainrings

TA 74 mm Bolt Circle Diameter triple innermost ring for Campagnolo cranks

• Precisely machined from 7075 aluminum alloy for exceptional durability and performance.
• Available in 24, 26, 28, 30 and 32 teeth for use as an innermost chainring on three ring cranks.
• We have used the 28 and 30 with success on Shimano Ultegra triple cranks.
• It is ok to mix and match different TA rings. Shifting is precise everytime.
• May be used with 7/8 or 9 speed, double or triple ring, Shimano and all other 74 mm BCD cranks. Made in France by TA.

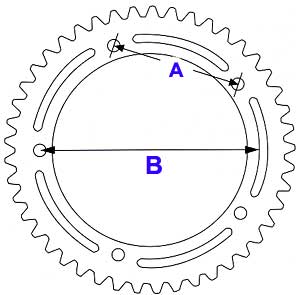

Chainrings are most often measured in reference to their Bolt Circle Diameter (BCD) depicted as B in the above picture. BCD is literally the diameter of an imaginary circle that connects the centers of all the chainring bolts.
It is easier to measure the distance between adjoining chainring bolts as depicted by A in the above picture. Use the chart below to determine what size rings you have.

74 BCD Rings: A = 43.5 mm, B = 74 mm
130 BCD Rings: A = 76.4 mm, B = 130 mm
135 BCD Rings: A = 79.5 mm, B = 135 mm
144 BCD Rings: A = 84.6 mm, B = 144 mm
