Bicycle Bottom Brackets Section: Page 7

Click on an underlined item or scroll down this page to view everything.

- Tools for Campagnolo Bottom Brackets -

- Tools for Shimano Bottom Brackets -

- Tools for Phil Wood Bottom Brackets -

- Tools for Traditional Bottom Brackets -

Order online via our - Secure Order Form - and receive FREE...

Tools for Campagnolo Bottom Brackets

Tools for installation:
  • Campagnolo Record, Chorus, older Athena and Racing Triple bottom brackets use a splined tool to install or remove their cups.
  • Park manufactures an excellent quality splined Campy bottom bracket tool. It fits Campagnolo Record or Chorus bottom bracket cups and all Campagnolo 8, 9 and 10 speed cassette lockrings.
  • The Park Campy BB tool is nicely machined, finished in black and works well.

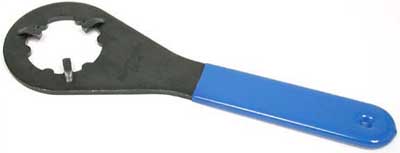

  • Campagnolo AC-H, AC-S and SC-S bottom brackets require a Park BBT-4 tool for installation. Note the alignment tabs on the BBT- 4 wrench that position and hold it perfectly on the bottom bracket cup..
  • The Park BBT-4 tool also fits Campagnolo Veloce, Centaur, Daytona, Mirage and Sachs bottom brackets.
    Tools are NOT pictured to scale.
Park BBT - 5 Tool
Park BBT - 5 Tool
Park BBT-4 Tool
Park BBT - 4 Tool
Part
Number		 Description Our Price
USD$		 Normal
Retail		 You
Save
TL-72-45 Park BBT-5 Campy BB/Cassette Lockring Tool $7.88 $10.00 $2.12
TL-72-44 Park BBT-4 Campy ACH/SCS BB Tool $8.88 $12.00 $3.12
Click on the underlined text to order online via our Secure Order Form.

Tools for Shimano Bottom Brackets

Tools for installation:

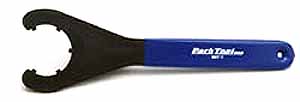

  • Shimano Dura-Ace and XTR splined bottom brackets use a precise fitting, 5 notch, Park BBT-7 tool to install or remove their aluminum alloy lock rings.
  • All Shimano Dura-Ace, Ultegra and 105 splined bottom brackets use a Park BBT-2 tool to install or remove their cups.
  • Both Park Shimano BB tools are nicely machined, finished in black and work well.
Park BBT - 7 Tool Park BBT - 2 Tool
Park BBT-7 BB Tool Park BBT-2 BB Tool

Part
Number		 Description Our Price
USD$		 Normal
Retail		 You
Save
TL-74-42 Park BBT-7 Dura-Ace/XTR Lock Ring Tool $19.88 $ 25.00 $5.12
TL-71-45 Park BBT-2 Shimano Splined Cup Tool $11.88 $ 15.00 $ 3.12
Click on the underlined text to order online via our Secure Order Form.

Tools for Phil Wood Bottom Brackets

Phil Wood Ring tool
  • Rings easily install with a Phil Wood bottom bracket ring tool. Two tools are required for British or French threading; one for Italian threads. These rings use a unique spline pattern; no other brand of tool will fit.
    British threaded bottom brackets require two ring tools because one ring has a left hand thread while the other has a right hand thread. If you only use one ring tool, one cup will loosen while the opposite cup is tightened.
  • The Phil Wood ring mounting tool is machined from stainless steel and will last a lifetime.
Phil Wood Ring Tool Phil Wood Bottom
Bracket Rings
Phil Ring Tool Phil Rings

Part
Number		 Description Our Price
USD$		 Normal
Retail		 You
Save
PW-BB-RT Phil Wood BB Mounting Ring Installation Tool $12.88ea $15.00 $2.12
Click on the underlined text to order online via our Secure Order Form.

Tools for Traditional Bottom Brackets

Tools for Cup, Cone and Loose Ball Bearing Bottom Brackets

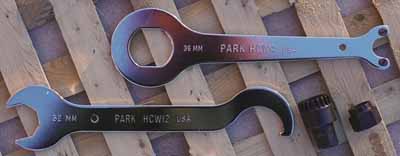

  • Campagnolo and most other loose ball bearing, bottom brackets require a Park HCW-4 and a Park HCW-12 tool for installation.
  • The Park HCW-4 is a combination 36 mm fixed cup and two pin adjustable cup tool. Pins are replaceable and also fit older Campagnolo BB pin tools.
  • The Park HCW-12 is a combination 32 mm headset nut and hooked lockring tool. It fits Campy and almost all other road, 1 inch headsets and bottom bracket lockrings.
Top: Park HCW - 4 Tool
Park HCW4-12Tools
Bottom: Park HCW - 12 Tool

Part
Number		 Description Our Price
USD$		 Normal
Retail		 You
Save
TL-73-44 Park HCW-4 Adjustable & Fixed Cup Tool $16.88 $20.00 $3.12
TL-70-48 Park Pins for Campy/HCW-4 BB Pin Tools $2.88ea $5.00 $2.12
TL-73-52 Park HCW-12 Lockring & 32 mm Headset Tool $14.88 $18.00 $3.12
Click on the underlined text to order online via our Secure Order Form.
