Hubs and Derailleurs Section: Page 1

Click on an underlined item or scroll down this page to view everything.

- Campagnolo Record Hubs -

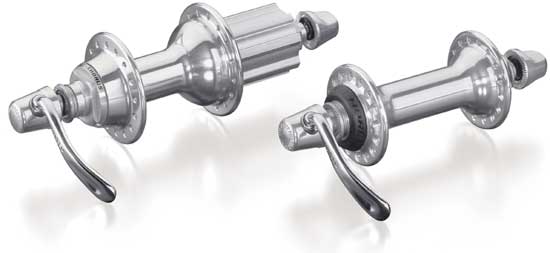

- Campagnolo Chorus Hubs -

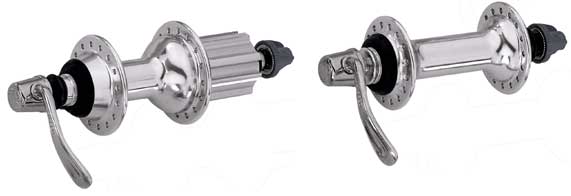

- Campagnolo Centaur Hubs -

- Campagnolo Veloce Hubs -

- Parts, Tools and Maintenance Tips -

Order online via our - Secure Order Form - and receive FREE...

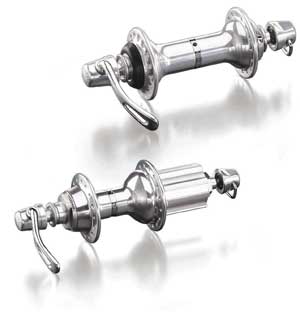

Campagnolo Record Hubs:

Campagnolo Record, Chorus and Centaur hubs use oversized aluminum alloy axles, adjustable 5/32 ball bearings and feather light, one piece alloy shells. All three models are exceptionally easy to overhaul, adjust and maintain. All parts are replaceable and most are interchangeable between the three models.
The Record hub set differs from Chorus and Centaur by virtue of a grease port built into the center of the hub and a titanium pawl carrier on the cassette or freehub body. Record quick release skewers have a cut out chromed steel handle and lightweight alloy end caps with "D" rings.
The Chorus hub set differs from Centaur because it has an alloy lock nut versus the Centaur black nylon lock nut. Bearings, freehub body, axle and hub shell are identical to Centaur. Chorus quick release skewers lack the Record style cut out chromed steel handle but have the lightweight alloy end caps.
Except for the axle lock nut and quick release skewers, the Centaur hubs are identical to Chorus. The skewers are chromed steel and come with plastic covered, steel end caps.
Record, Chorus and Centaur hubs use 5/32 grade 25 ball bearings in amber retainers. You may replace the ball bearings with Le Tour loose balls but it is important to reuse the retainers. The amber retainers are designed to constantly wipe the surface of the ball bearings to keep them clean and well lubricated.
A Record rear hub with a skewer weighs just 316 grams. A Chorus rear hub tips the scales at 326 grams while a Centaur weighs in at just 332 grams.
A Record front hub with a skewer weighs just 181 grams. A Chorus front hub tips the scales at 180 grams while a Centaur weighs in at just 200 grams.
Record, Chorus and Centaur rear hubs have an inside dropout face to inside dropout face width of 130mm. They will work fine with 7, 8, 9 and 10 speed drivetrains.
You may use various spacing kits on Record, Chorus and Centaur rear hubs in conjunction with a loose cog Campagnolo 9 speed cassette to accommodate 7, 8 and 9 speed Campagnolo and Shimano shifting systems.
Record, Chorus and Centaur rear hubs come with a 27.0 cassette lock ring. Use a Park BBT-5 tool to tighten or loosen the cassette lock ring.
Record, Chorus and Centaur front hubs have an inside fork tip to inside for tip measurement of 100mm.

We suggest using Le Tour Whisper White grease and the Le Tour Grease Gun for lubricating Campagnolo hubs.
Genuine Campagnolo replacement parts are available below.
Made in Italy by Campagnolo and backed with a three year warranty.
Warranty service and help with technical questions is available from Campagnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, e-mail them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
Official product manuals and more product information is also available at Campagnolo.com .
The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.

Part #	Description	Normal Retail	Our Price USD$	You Save
Campagnolo Record front and rear hubs
HU-92-38	Record Rear Hub with 32 Spoke Holes	$200.00	$179.88	$20.12
HU-92-35	Record Front Hub with 32 Spoke Holes	$100.00	$89.88	$10.12
HU-92-39	Record Rear Hub with 36 Spoke Holes	$200.00	$179.88	$20.12
HU-92-36	Record Front Hub with 36 Spoke Holes	$100.00	$89.88	$10.12
Campagnolo Chorus front and rear hubs
HU-92-07	Chorus Rear Hub with 32 Spoke Holes	$180.00	$159.88	$20.12
HU-92-05	Chorus Front Hub with 32 Spoke Holes	$90.00	$79.88	$10.12
HU-92-08	Chorus Rear Hub with 36 Spoke Holes	$180.00	$159.88	$20.12
HU-92-06	Chorus Front Hub with 36 Spoke Holes	$90.00	$79.88	$10.12
Campagnolo Centaur silver front and rear hubs
HU-92-27	Centaur Silver Rear Hub with 32 Spoke Holes	$160.00	$139.88	$20.12
HU-92-25	Centaur Silver Front Hub with 32 Spoke Holes	$85.00	$74.88	$10.12
HU-92-28	Centaur Silver Rear Hub with 36 Spoke Holes	$160.00	$139.88	$20.12
HU-92-26	Centaur Silver Front Hub with 32 Spoke Holes	$85.00	$74.88	$10.12
Campagnolo Centaur Grey front and rear hubs
HU-94-32	Centaur Grey Rear Hub with 32 Spoke Holes	$160.00	$139.88	$20.12
HU-94-30	Centaur Grey Front Hub with 32 Spoke Holes	$85.00	$74.88	$10.12
HU-94-33	Centaur Grey Rear Hub with 36 Spoke Holes	$160.00	$139.88	$20.12
HU-94-31	Centaur Grey Front Hub with 36 Spoke Holes	$85.00	$74.88	$10.12
Click on the underlined text to order online via our Secure Order Form.

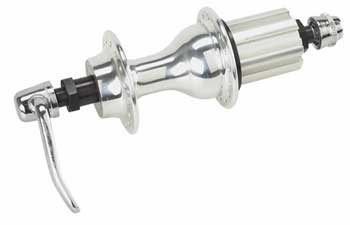

Campagnolo Veloce hubs are ideal for commuting, touring or cycle cross. The rear hub has an oversized hollow steel axle that is rigid and tough. It will easily support a 200 pound rider and fully loaded panniers.
Oversized, sealed cartridge bearings spin smoothly and never need re-greasing. They are usually good for 10,000 miles and can easily be replaced.
A well chromed quick release skewer that once graced Record hubs is now standard equipment on Veloce hubs.
The Veloce front hub employs conventional 3/16 loose ball bearings and a standard 9 x 1 x 26 tpi threaded axle.
A Veloce rear hub with a skewer weighs just 458 grams.
A Veloce front hub with a skewer weighs just 249 grams.
Veloce rear hubs have an inside dropout face to inside dropout face width of 130mm. They will work fine with 7, 8, 9 and 10 speed drivetrains.
You may use various spacing kits on Veloce rear hubs in conjunction with a loose cog Campagnolo 9 speed cassette to accommodate 7, 8 and 9 speed Campagnolo and Shimano shifting systems.
Veloce rear hubs come with a 27.0 cassette lock ring. Use a Park BBT-5 tool to tighten or loosen the cassette lock ring.
Veloce front hubs have an inside fork tip to inside for tip measurement of 100mm.
We suggest using Le Tour Whisper White grease and the Le Tour Grease Gun for lubricating Campagnolo hubs.
Genuine Campagnolo replacement parts are available below.
Made in Italy by Campagnolo and backed with a three year warranty.
Warranty service and help with technical questions is available from Campagnolo USA in Carlsbad, California USA. Call Campagnolo USA at (760) 931-0106, e-mail them at Info@CampagnoloUSA.com or visit them at Campagnolo.com by clicking on the underlined text .
Official product manuals and more product information is also available at Campagnolo.com .
The product manuals may be downloaded. They are in Adobe PDF format and require Adobe Acrobat Reader 4.0 or higher to read or print.

Part #	Description	Normal Retail	Our Price USD$	You Save
Campagnolo Veloce front and rear hubs
HU-92-78	Veloce Rear Hub with 32 Spoke Holes	$80.00	$69.88	$10.12
HU-94-34	Veloce Front Hub with 32 Spoke Holes	$45.00	$34.88	$10.12
HU-92-79	Veloce Rear Hub with 36 Spoke Holes	$80.00	$69.88	$10.12
HU-94-35	Veloce Front Hub with 36 Spoke Holes	$45.00	$34.88	$10.12
Click on the underlined text to order online via our Secure Order Form.

Campagnolo Hub Parts, Tools, Maintenance and Tool Use Tips:

We stock a wide range of genuine replacement parts, bearings and tools for Campagnolo hubs. Click on the underlined text below to read more about:
Visit our Hub Accessories page to read about quick release skewers.
Visit our Campagnolo Hub Parts page to read about replacement parts for 1999 to current Campagnolo hubs.
Visit our Campagnolo Hub Parts page to read about replacement parts for pre-1999 Campagnolo road hubs and current Campagnolo track hubs.
Visit our Hub Tools page to read about tools for maintaining Campagnolo hubs.
Visit our Hub Overhaul and Adjustment Tips page to read about repair and maintenance procedures for most brands of hubs.
